SKU: YAT209-111-SKF

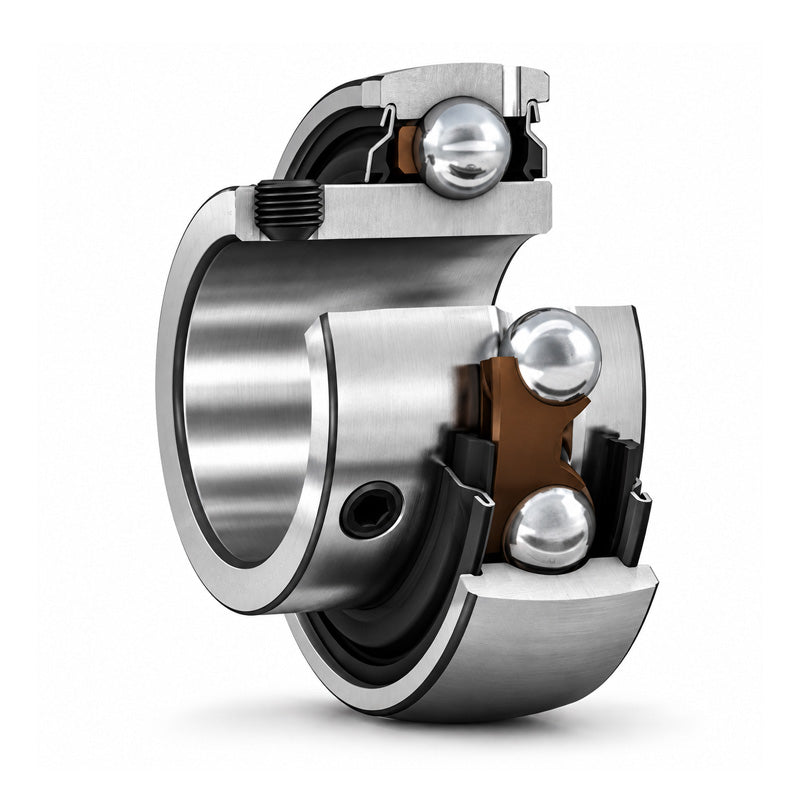

SKF YAT209-111 Grub Screw Type Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
SKF YAT209-111 Grub Screw Type Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
Regular price
Rs. 5,935.00
ex VAT
Regular price
Sale price
Rs. 5,935.00
ex VAT
In stock
Price Break
10+
Rs. 5,282.15
19+
Rs. 4,985.40
29+
Rs. 4,926.05
39+
Rs. 4,866.70
49+
Rs. 4,807.35
74+
Rs. 4,748.00
99+
Rs. 4,451.25
199+
Rs. 4,391.90
249+
Rs. 4,332.55
499+
Rs. 4,273.20
999+
Rs. 4,154.50
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- YAT
- Type:
- Spherical Outer
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| B | 41.5mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.5mm |
| r1r2 min | 1mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.65 kg |
