SKU: YAT207-107-SKF

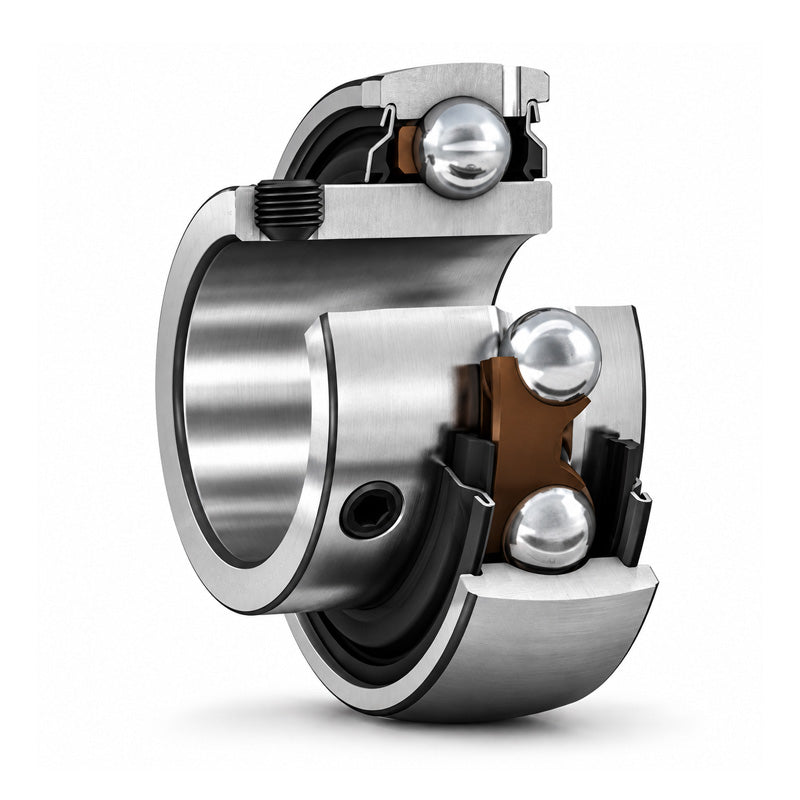

SKF YAT207-107 Grub Screw Type Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter
SKF YAT207-107 Grub Screw Type Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter
Regular price
Rs. 7,021.35
ex VAT
Regular price
Sale price
Rs. 7,021.35
ex VAT
In stock
Price Break
10+
Rs. 6,249.00
19+
Rs. 5,897.93
29+
Rs. 5,827.72
39+
Rs. 5,757.51
49+
Rs. 5,687.29
74+
Rs. 5,617.08
99+
Rs. 5,266.01
199+
Rs. 5,195.80
249+
Rs. 5,125.59
499+
Rs. 5,055.37
999+
Rs. 4,914.95
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Style:
- YAT
- Type:
- Spherical Outer
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| D | 72mm |
| B | 35mm |
| C | 19mm |
| d1 | 46.1mm |
| s1 | 25.5mm |
| r1r2 min | 1mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 0.38 kg |
