SKU: YAT205-100-SKF

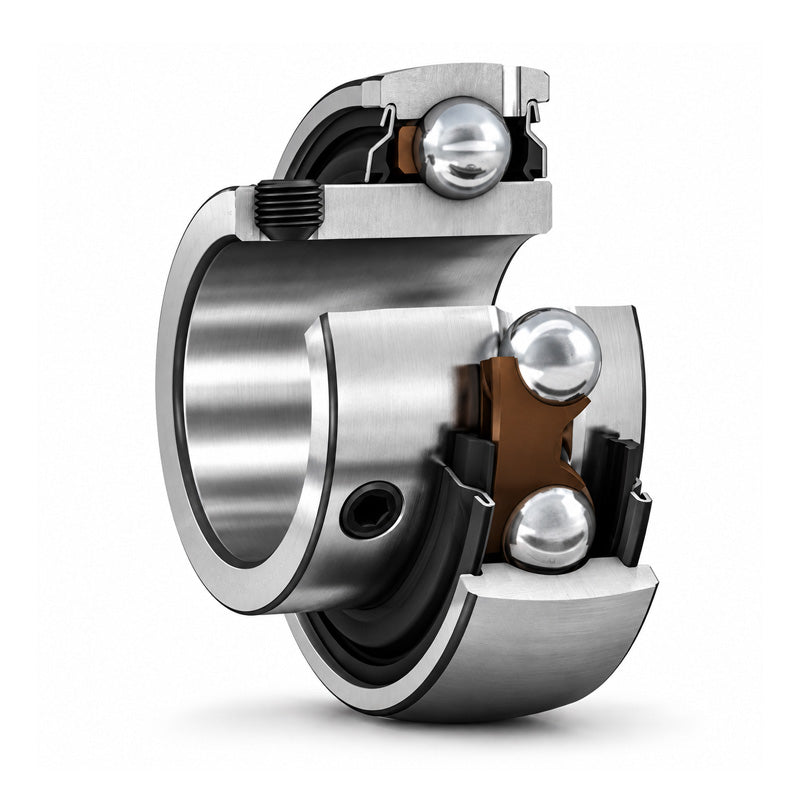

SKF YAT205-100 Grub Screw Type Bearing Insert 1 inch Bore 52mm Outside Diameter
SKF YAT205-100 Grub Screw Type Bearing Insert 1 inch Bore 52mm Outside Diameter
Regular price
Rs. 2,555.01
ex VAT
Regular price
Sale price
Rs. 2,555.01
ex VAT
In stock
Price Break
10+
Rs. 2,273.96
19+
Rs. 2,146.21
29+
Rs. 2,120.66
39+
Rs. 2,095.11
49+
Rs. 2,069.56
74+
Rs. 2,044.01
99+
Rs. 1,916.26
199+
Rs. 1,890.71
249+
Rs. 1,865.16
499+
Rs. 1,839.61
999+
Rs. 1,788.51
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- YAT
- Type:
- Spherical Outer
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.16 kg |
