SKU: YAT205-015-SKF

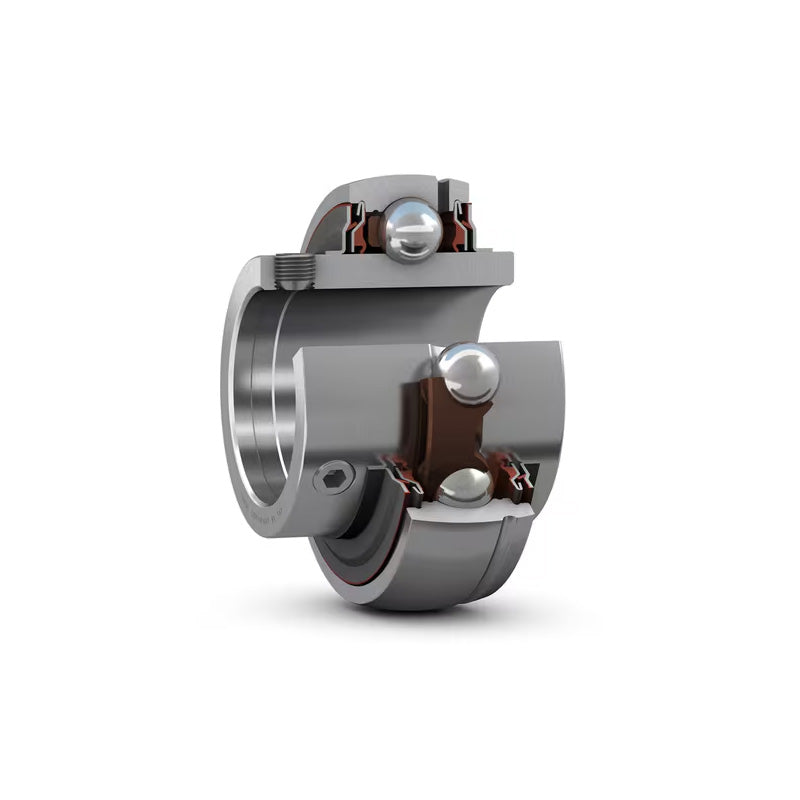

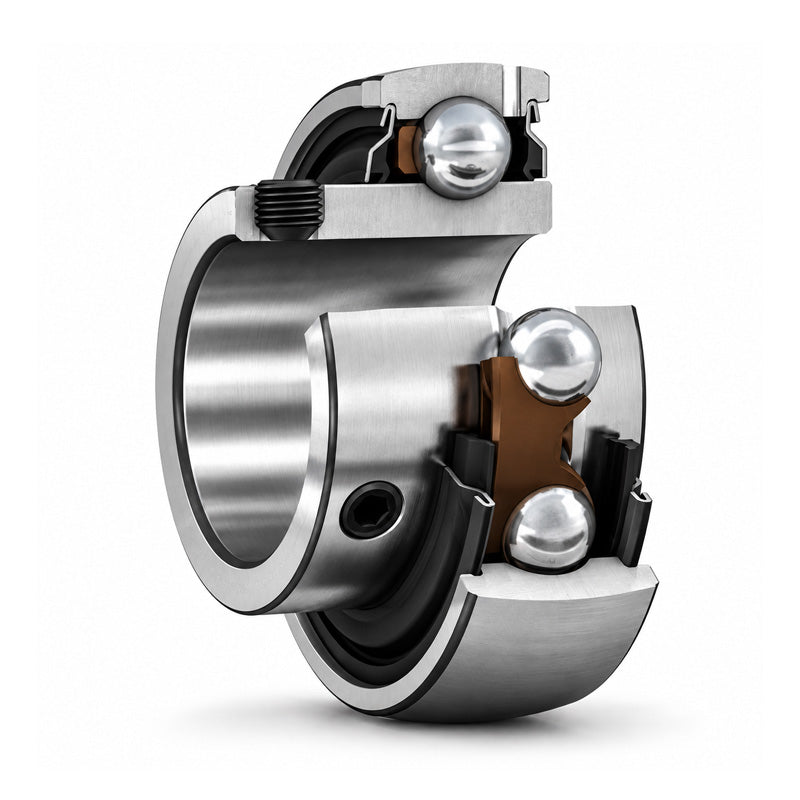

SKF YAT205-015 Grub Screw Type Bearing Insert 15/16 inch Bore 52mm Outside Diameter
SKF YAT205-015 Grub Screw Type Bearing Insert 15/16 inch Bore 52mm Outside Diameter
Regular price
Rs. 6,377.90
Regular price
Sale price
Rs. 6,377.90
Taxes included.
In stock
Price Break
10+
Rs. 5,676.33
19+
Rs. 5,357.44
29+
Rs. 5,293.66
39+
Rs. 5,229.88
49+
Rs. 5,166.10
74+
Rs. 5,102.32
99+
Rs. 4,783.43
199+
Rs. 4,719.65
249+
Rs. 4,655.87
499+
Rs. 4,592.09
999+
Rs. 4,464.53
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 15/16 inch |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.18 kg |
