SKU: YAT204-012-SKF

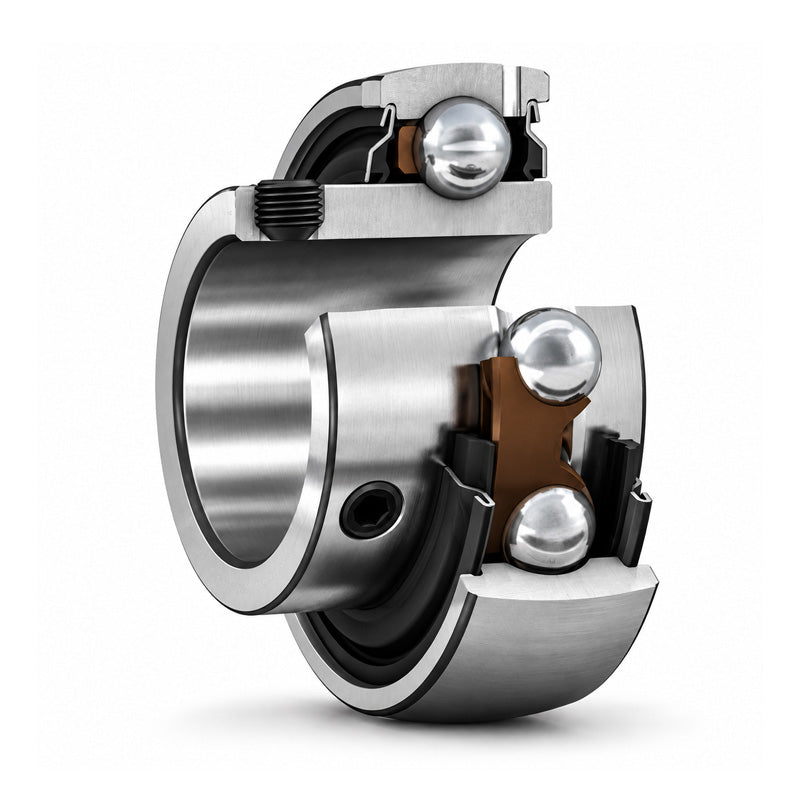

SKF YAT204-012 Grub Screw Type Bearing Insert 3/4 inch Bore 47mm Outside Diameter
SKF YAT204-012 Grub Screw Type Bearing Insert 3/4 inch Bore 47mm Outside Diameter
Regular price
Rs. 2,990.36
ex VAT
Regular price
Sale price
Rs. 2,990.36
ex VAT
In stock
Price Break
10+
Rs. 2,661.42
19+
Rs. 2,511.90
29+
Rs. 2,482.00
39+
Rs. 2,452.10
49+
Rs. 2,422.19
74+
Rs. 2,392.29
99+
Rs. 2,242.77
199+
Rs. 2,212.87
249+
Rs. 2,182.96
499+
Rs. 2,153.06
999+
Rs. 2,093.25
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- YAT
- Type:
- Spherical Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| B | 25.5mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.14 kg |
