SKU: YAT203-010-SKF

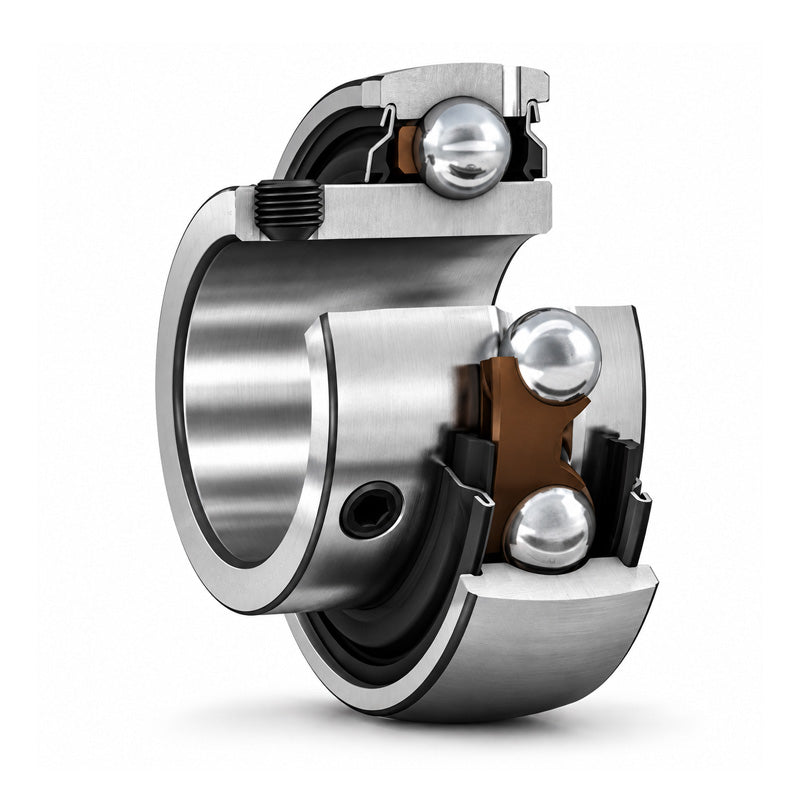

SKF YAT203-010 Grub Screw Type Bearing Insert 5/8 inch Bore 40mm Outside Diameter
SKF YAT203-010 Grub Screw Type Bearing Insert 5/8 inch Bore 40mm Outside Diameter
Regular price
Rs. 879.73
ex VAT
Regular price
Sale price
Rs. 879.73
ex VAT
In stock
Price Break
10+
Rs. 782.96
19+
Rs. 738.97
29+
Rs. 730.18
39+
Rs. 721.38
49+
Rs. 712.58
74+
Rs. 703.78
99+
Rs. 659.80
199+
Rs. 651.00
249+
Rs. 642.20
499+
Rs. 633.41
999+
Rs. 615.81
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- YAT
- Type:
- Spherical Outer
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 40mm |
| B | 22.5mm |
| C | 12mm |
| d1 | 24.2mm |
| s1 | 16mm |
| r1r2 min | 0.3mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.1 kg |
