SKU: YAR212-2F-SKF

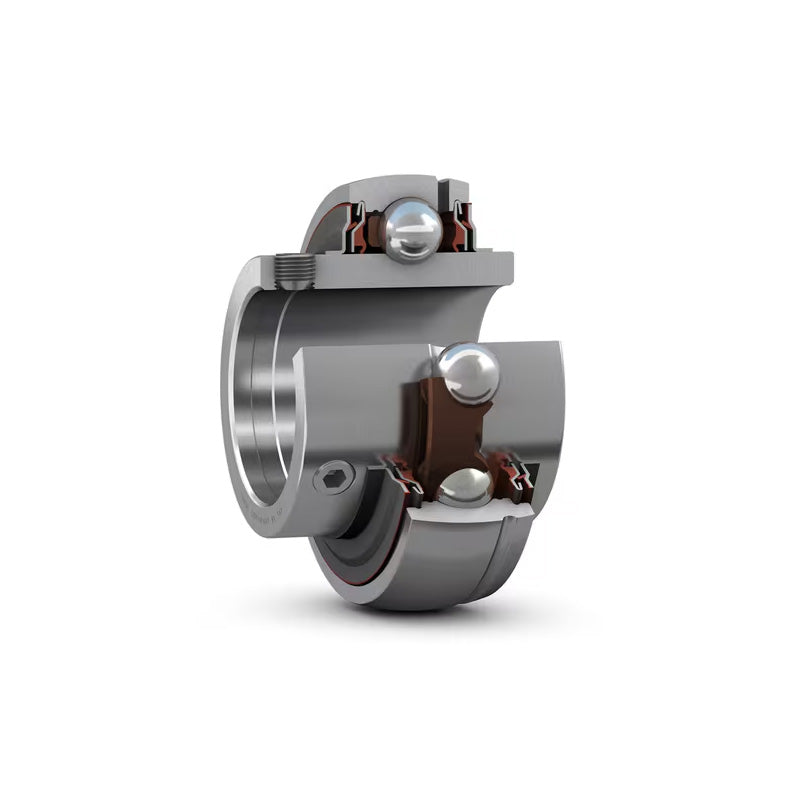

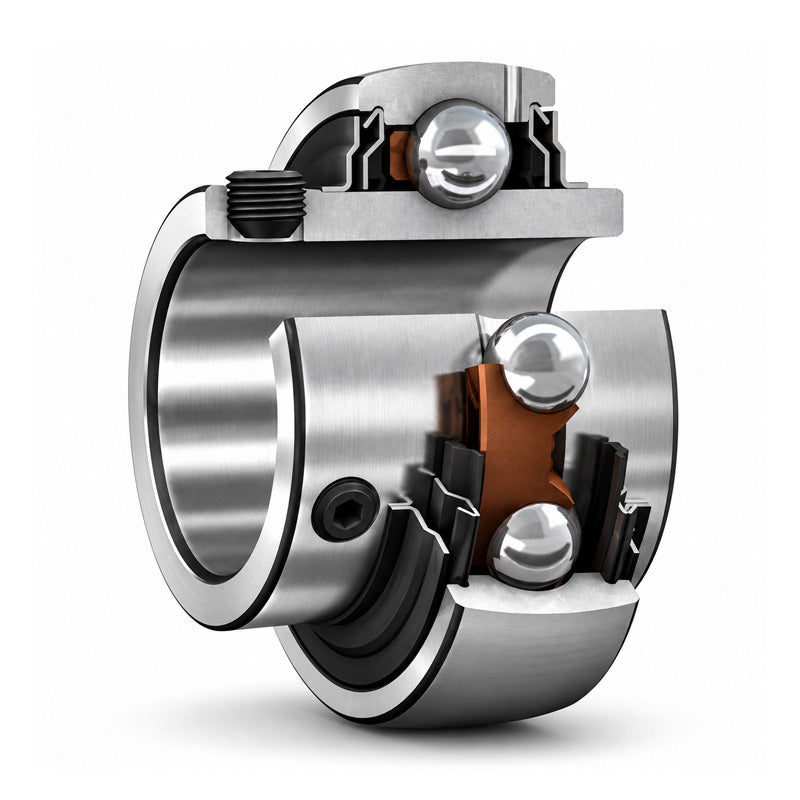

SKF YAR212-2F Grub Screw Type Bearing Insert with 60mm Bore 110mm Outside Diameter
SKF YAR212-2F Grub Screw Type Bearing Insert with 60mm Bore 110mm Outside Diameter
Regular price
Rs. 9,048.37
Regular price
Sale price
Rs. 9,048.37
Taxes included.
In stock
Price Break
10+
Rs. 8,053.05
19+
Rs. 7,600.63
29+
Rs. 7,510.15
39+
Rs. 7,419.66
49+
Rs. 7,329.18
74+
Rs. 7,238.70
99+
Rs. 6,786.28
199+
Rs. 6,695.79
249+
Rs. 6,605.31
499+
Rs. 6,514.83
999+
Rs. 6,333.86
Description
Description
|
SKF YAR-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 series bearings have an extended inner ring on both sides. This reduces the extent to which the inner ring can tilt on the shaft enabling the bearing to run smoothly. The outer ring has two lubrication holes as standard. The bearings are fitted with the rugged standard integral seal. Plain sheet steel flingers are also provided if the bearing designation has a suffix of 2F, or rubberised sheet steel flingers (multiple seal) if the bearing designation has a suffix of 2RF. Benefits: Reduces inner ring tilting on shaft enabling the bearing to run smoothly, lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- YAR
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 1.3 kg |
