SKU: YAR212-207-2FW/VA228-SKF

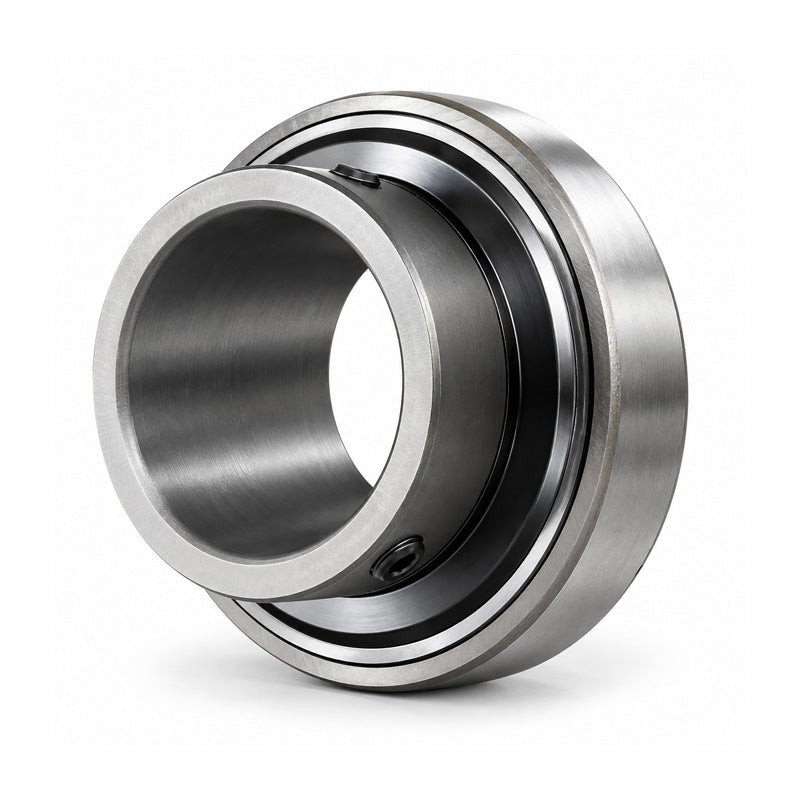

SKF YAR2122072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2-7/16 inch shaft
SKF YAR2122072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2-7/16 inch shaft
Regular price
Rs. 55,336.01
ex VAT
Regular price
Sale price
Rs. 55,336.01
ex VAT
In stock
Price Break
10+
Rs. 49,249.05
19+
Rs. 46,482.25
29+
Rs. 45,928.89
39+
Rs. 45,375.53
49+
Rs. 44,822.17
74+
Rs. 44,268.81
99+
Rs. 41,502.01
199+
Rs. 40,948.65
249+
Rs. 40,395.29
499+
Rs. 39,841.93
999+
Rs. 38,735.21
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 1.35 kg |
