SKU: YAR211-200-2FW/VA228-SKF

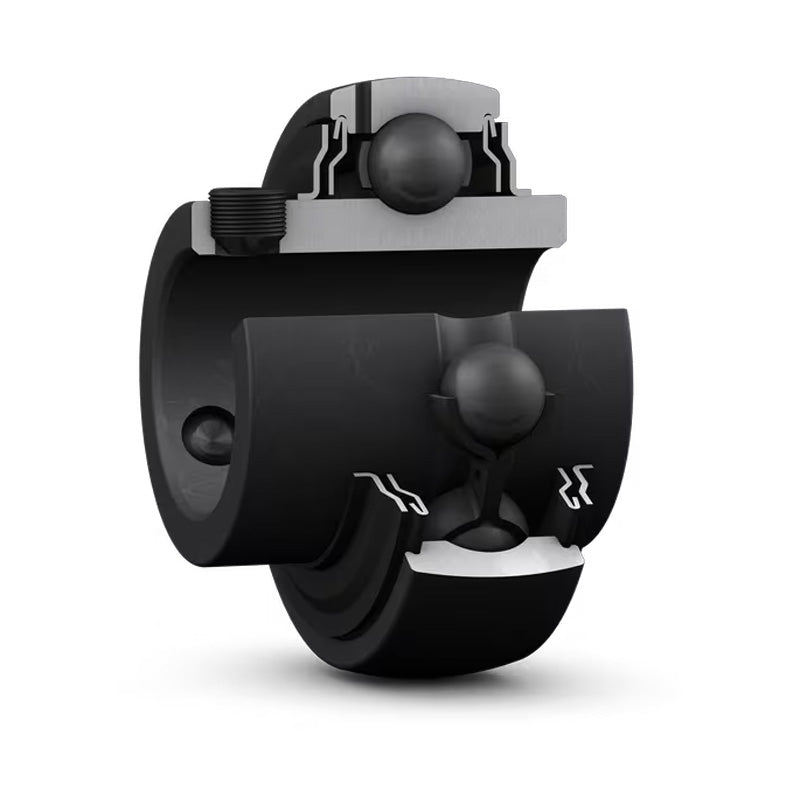

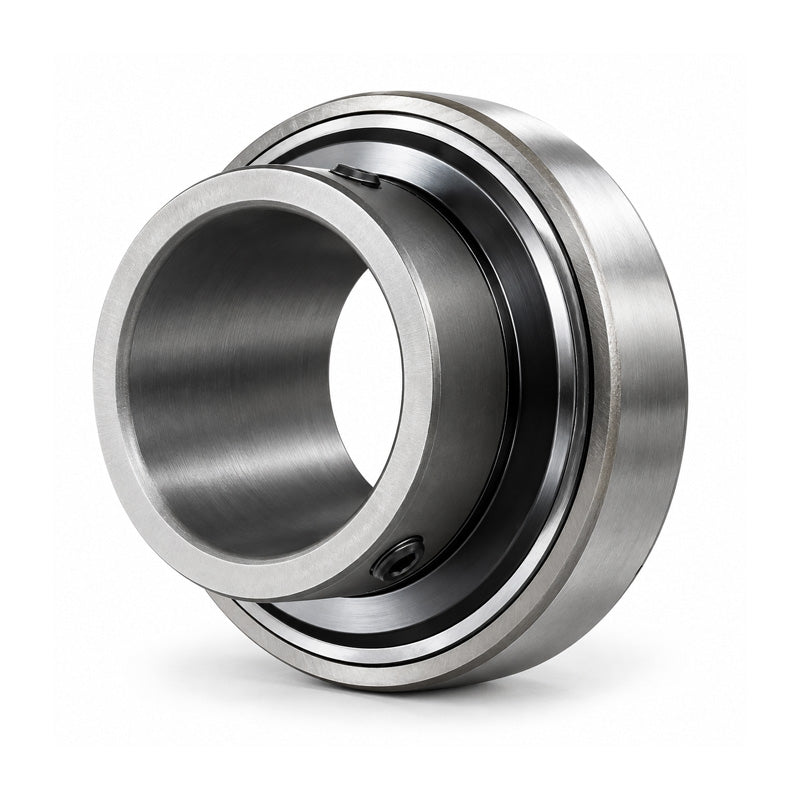

SKF YAR2112002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2 inch shaft
SKF YAR2112002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2 inch shaft
Regular price
Rs. 43,054.60
ex VAT
Regular price
Sale price
Rs. 43,054.60
ex VAT
In stock
Price Break
10+
Rs. 38,318.59
19+
Rs. 36,165.86
29+
Rs. 35,735.32
39+
Rs. 35,304.77
49+
Rs. 34,874.23
74+
Rs. 34,443.68
99+
Rs. 32,290.95
199+
Rs. 31,860.40
249+
Rs. 31,429.86
499+
Rs. 30,999.31
999+
Rs. 30,138.22
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| B | 55.6mm |
| C | 25mm |
| d1 | 69.1mm |
| s1 | 33.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 1.1 kg |
