SKU: YAR210-115-2FW/VA228-SKF

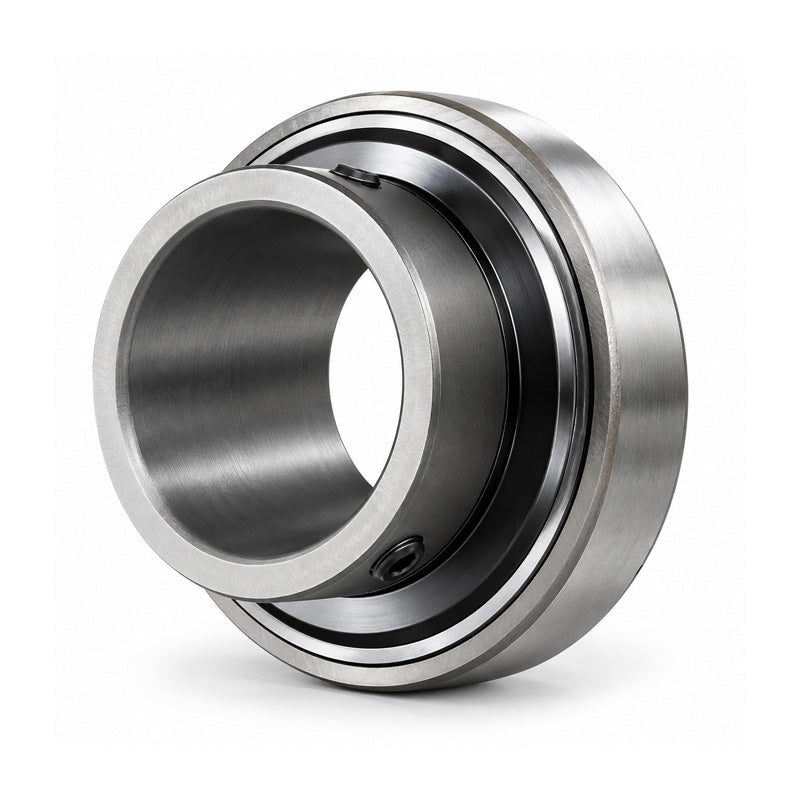

SKF YAR2101152FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-15/16 inch shaft
SKF YAR2101152FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-15/16 inch shaft
Regular price
Rs. 37,230.49
ex VAT
Regular price
Sale price
Rs. 37,230.49
ex VAT
In stock
Price Break
10+
Rs. 33,135.14
19+
Rs. 31,273.61
29+
Rs. 30,901.31
39+
Rs. 30,529.00
49+
Rs. 30,156.70
74+
Rs. 29,784.39
99+
Rs. 27,922.87
199+
Rs. 27,550.56
249+
Rs. 27,178.26
499+
Rs. 26,805.95
999+
Rs. 26,061.34
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| B | 51.6mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 32.6mm |
| r1r2 min | 1mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 0.78 kg |
