SKU: YAR209-112-2FW/VA228-SKF

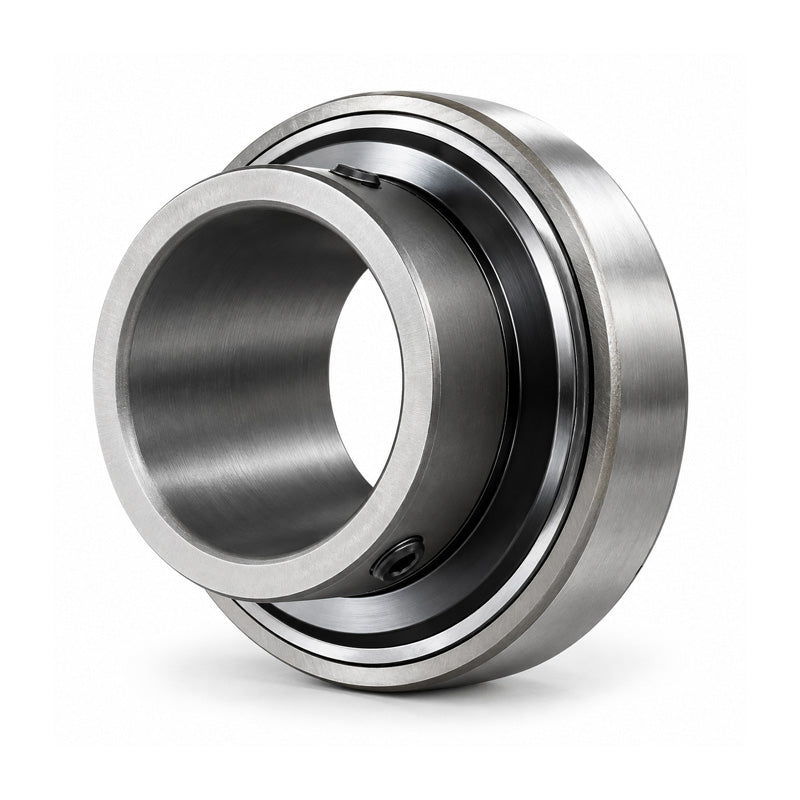

SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
Regular price
Rs. 26,448.48
ex VAT
Regular price
Sale price
Rs. 26,448.48
ex VAT
In stock
Price Break
10+
Rs. 23,539.15
19+
Rs. 22,216.72
29+
Rs. 21,952.24
39+
Rs. 21,687.75
49+
Rs. 21,423.27
74+
Rs. 21,158.78
99+
Rs. 19,836.36
199+
Rs. 19,571.88
249+
Rs. 19,307.39
499+
Rs. 19,042.91
999+
Rs. 18,513.94
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.62 kg |
