SKU: YAR209-111-2FW/VA201-SKF

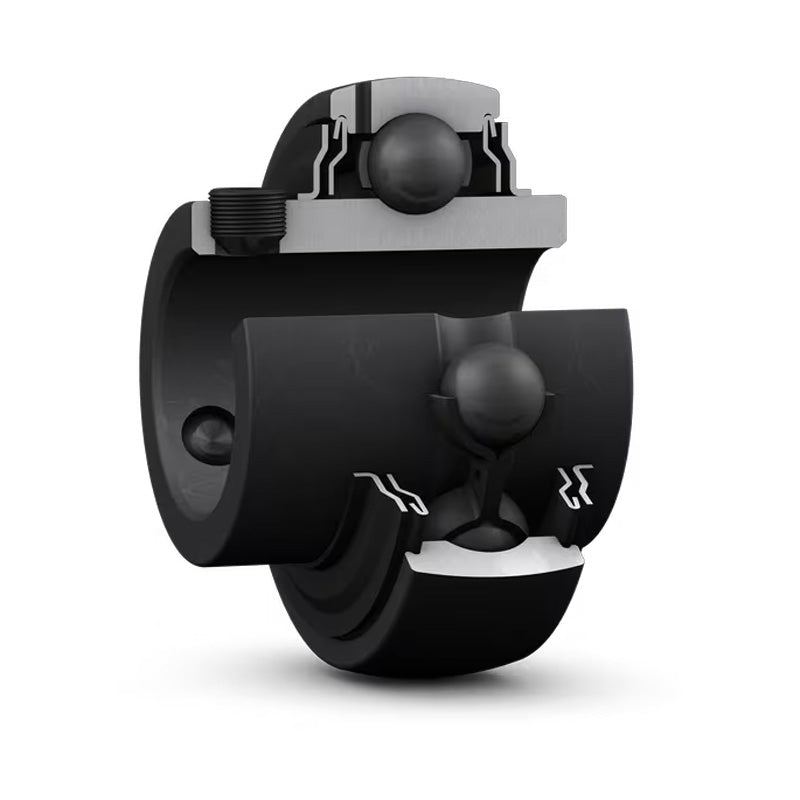

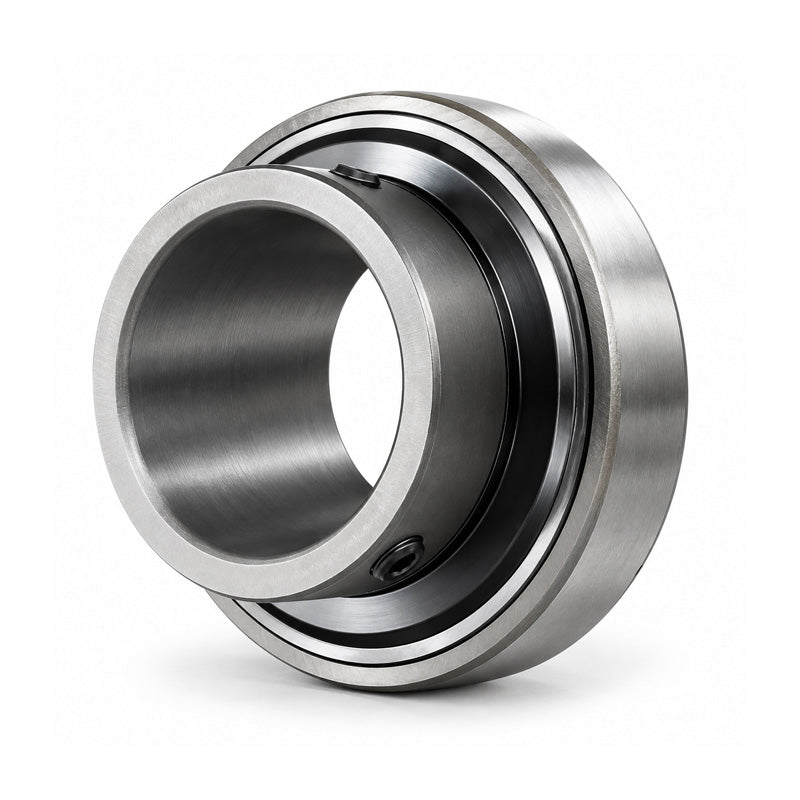

SKF YAR2091112FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-11/16 inch shaft
SKF YAR2091112FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-11/16 inch shaft
Regular price
Rs. 21,248.69
ex VAT
Regular price
Sale price
Rs. 21,248.69
ex VAT
In stock
Price Break
10+
Rs. 18,911.33
19+
Rs. 17,848.90
29+
Rs. 17,636.41
39+
Rs. 17,423.93
49+
Rs. 17,211.44
74+
Rs. 16,998.95
99+
Rs. 15,936.52
199+
Rs. 15,724.03
249+
Rs. 15,511.54
499+
Rs. 15,299.06
999+
Rs. 14,874.08
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.75 kg |
