SKU: YAR208-108-2FW/VA228-SKF

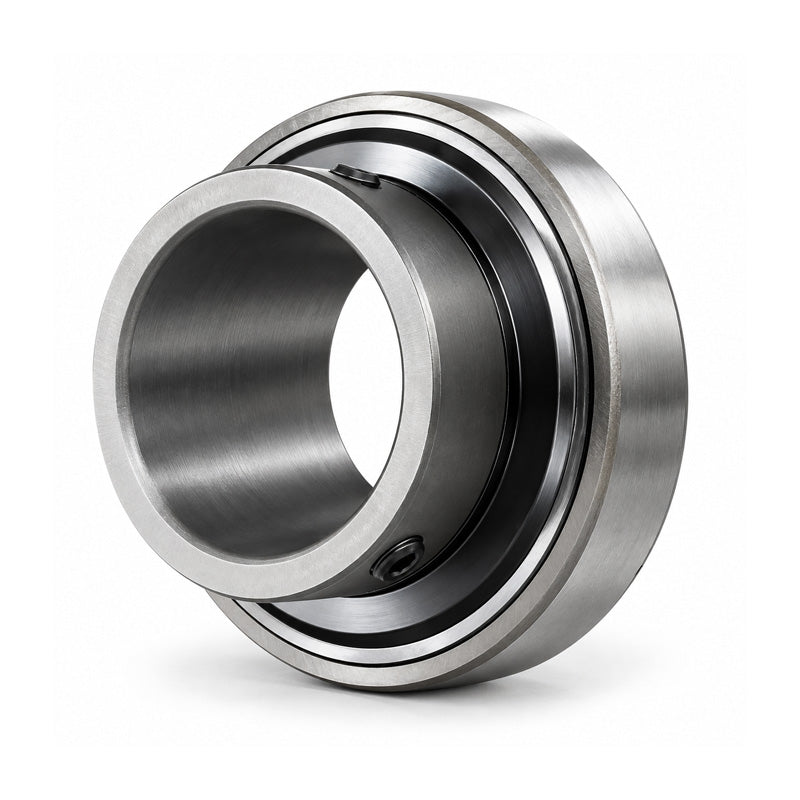

SKF YAR2081082FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/2 inch shaft
SKF YAR2081082FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/2 inch shaft
Regular price
Rs. 21,955.34
ex VAT
Regular price
Sale price
Rs. 21,955.34
ex VAT
In stock
Price Break
10+
Rs. 19,540.25
19+
Rs. 18,442.49
29+
Rs. 18,222.93
39+
Rs. 18,003.38
49+
Rs. 17,783.83
74+
Rs. 17,564.27
99+
Rs. 16,466.51
199+
Rs. 16,246.95
249+
Rs. 16,027.40
499+
Rs. 15,807.84
999+
Rs. 15,368.74
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| B | 49.2mm |
| C | 21mm |
| d1 | 51.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 0.59 kg |
