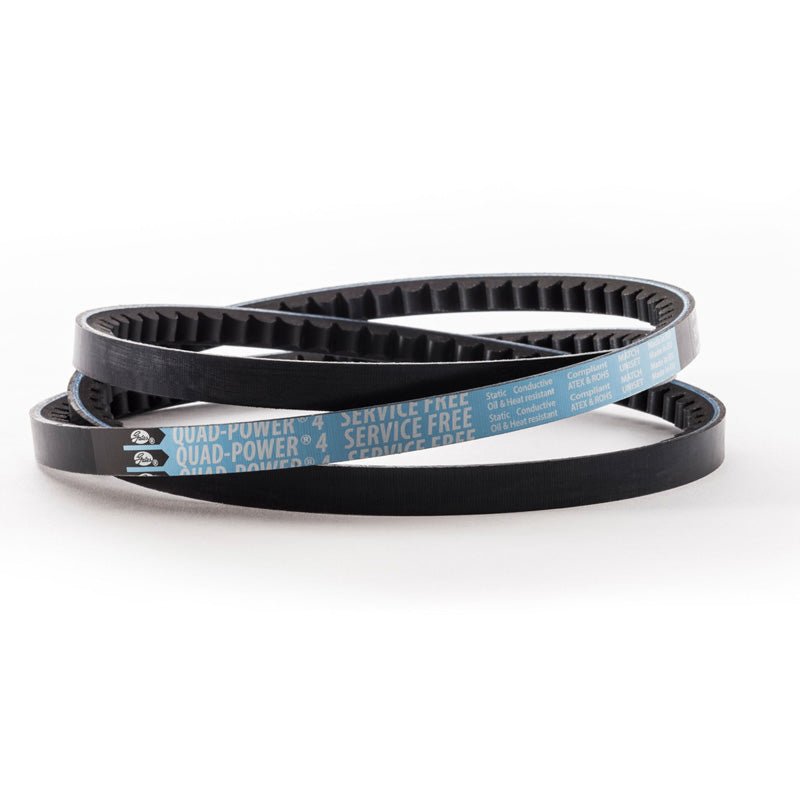

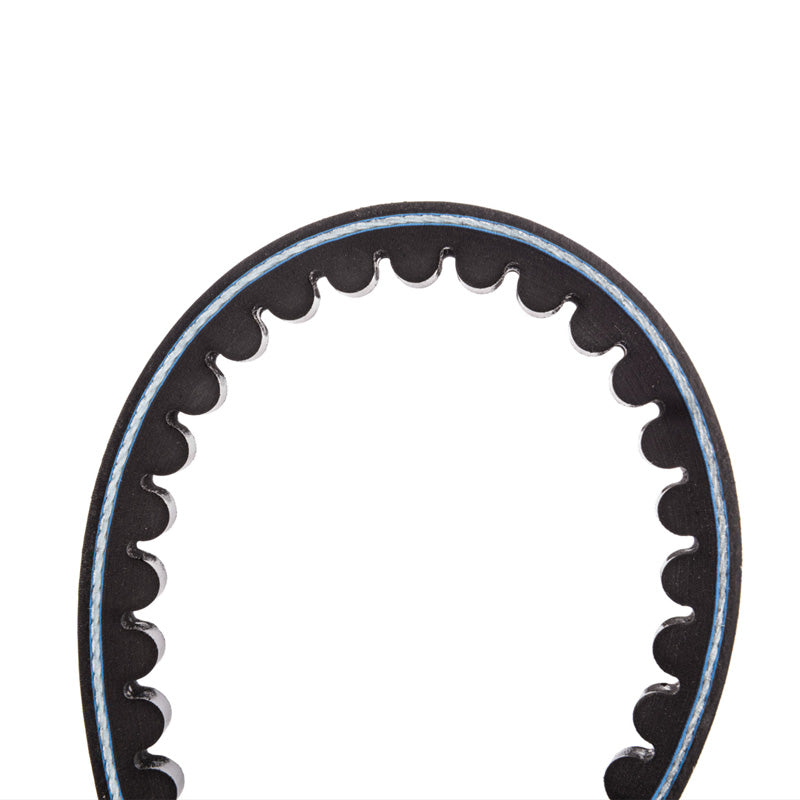

XPA690 Gates Quad Power 4 XPA-Section Cogged V-Belt (Uniset Match)

Gates Quad Power 4 XPA-Section Cogged V-Belt: The Quad Power 4 Cogged V-belts don't need re-tensioning after 24 hours of operation which means no machine or production downtime. Gates uses an innovative minimal-stretch cord technology and has been designed the industry's first bandless zero-maintenance V-belt. The belts have anti-static properties to ISO 1813 (electrical resistance and antistatic standard) and are REACH, RoHS 2 and ATEX compliant. Suitable for use in operating temperatures of -50 deg C to +130 deg C. All sizes in this range meet the Gates UNISET tolerance standards and can be installed without matching. The belts are manufactured in the EU and conform to the requirements of DIN 7753 / ISO 4184 / RMA IP22.
Benefits: Service-free which means no downtime, RoHS and REACH compliant, No re-tensioning.

Brand / Quality:

Gates - High Quality

Belt Number:

XPA690

Inside Length Approx:

651mm

Outside Length Approx:

708mm

Belt Width Approx:

13mm

Belt Depth Approx:

9mm
