SKU: WSZC12-JCS

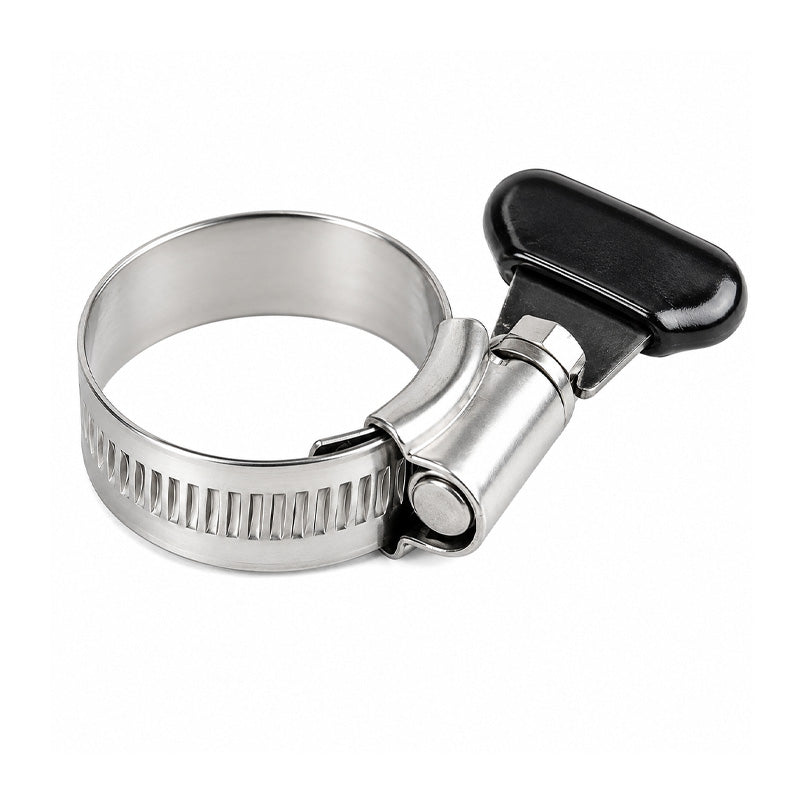

JCS WSZC12 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 9.5-12mm Band Width 9mm
JCS WSZC12 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 9.5-12mm Band Width 9mm
Regular price
Rs. 572.24
Regular price
Sale price
Rs. 572.24
Taxes included.
In stock
Price Break
10+
Rs. 509.29
19+
Rs. 480.68
29+
Rs. 474.96
39+
Rs. 469.24
49+
Rs. 463.51
74+
Rs. 457.79
99+
Rs. 429.18
199+
Rs. 423.46
249+
Rs. 417.74
499+
Rs. 412.01
999+
Rs. 400.57
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 9.5mm
- Max Adjustment Range:
- 12mm
Technical
Technical
| BS No. | 12 |
|---|---|
| Adjustment Range (mm) | 9.5-12mm |
| Adjustment Range (inch) | 3/8 - 1/2 inch |
| A | 7mm |
| B | 31mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| G | 24mm |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
