SKU: WMOF-3040-50

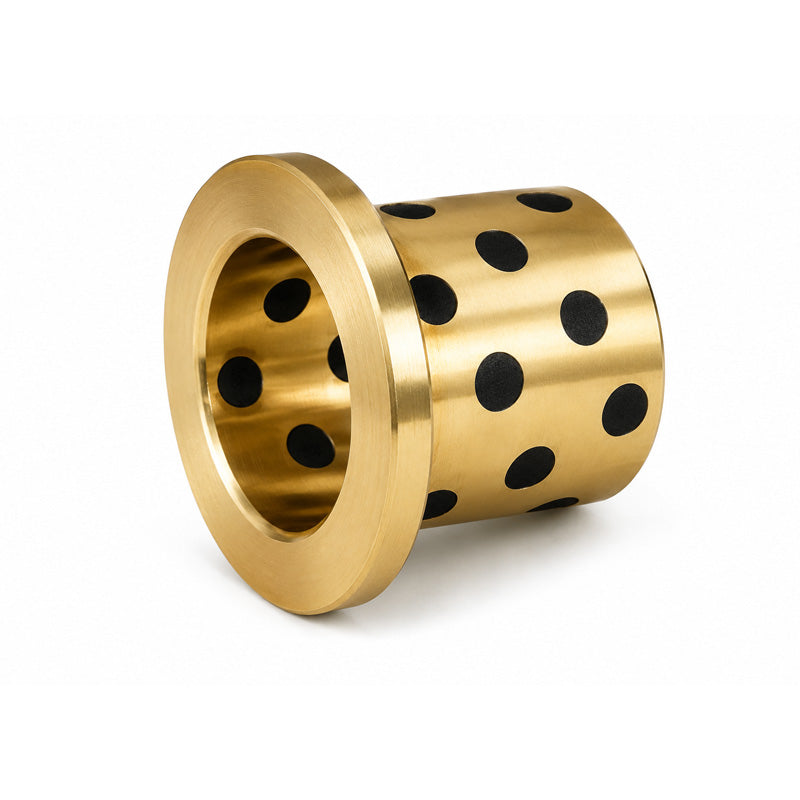

WMOF304050 Flanged Oilless Bronze Bush 30x40x50mm - Allow 2-3 Days
WMOF304050 Flanged Oilless Bronze Bush 30x40x50mm - Allow 2-3 Days
Regular price
Rs. 4,536.99
Regular price
Sale price
Rs. 4,536.99
Taxes included.
Equivalent to: WMOF304050
In stock
Price Break
5+
Rs. 4,491.62
10+
Rs. 4,310.14
20+
Rs. 4,219.40
50+
Rs. 4,083.29
100+
Rs. 3,992.55
500+
Rs. 3,765.70
1000+
Rs. 3,175.89
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMOF304050
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Length:
- 50mm
- Item Type:
- Flanged
Technical
Technical
| d | 30mm |
|---|---|
| D | 40mm |
| L | 50mm |
| F | 50mm |
| L1 | 5mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 159.155 rpm |
| Max load | 15290.52 kg |
| Housing Tolerance | H7 |
