SKU: WMO-1824-30

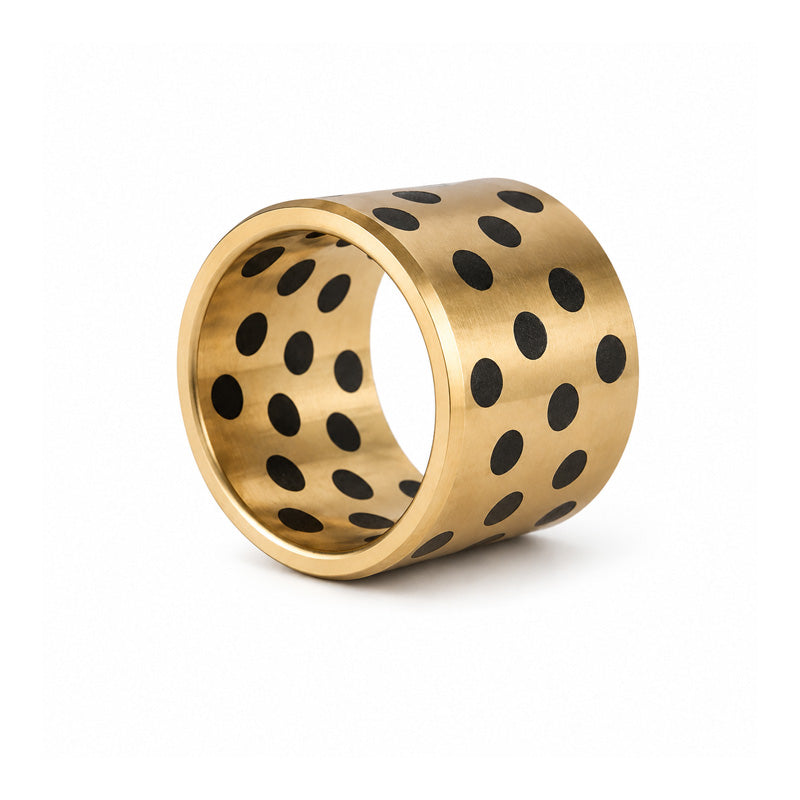

WMO182430 Plain Oilless Bronze Bush 18x24x30mm
WMO182430 Plain Oilless Bronze Bush 18x24x30mm
Regular price
Rs. 2,076.88
ex VAT
Regular price
Sale price
Rs. 2,076.88
ex VAT
Equivalent to: WMO182430
In stock
Price Break
10+
Rs. 1,848.42
19+
Rs. 1,744.58
29+
Rs. 1,723.81
39+
Rs. 1,703.04
49+
Rs. 1,682.27
74+
Rs. 1,661.50
99+
Rs. 1,557.66
199+
Rs. 1,536.89
249+
Rs. 1,516.12
499+
Rs. 1,495.35
999+
Rs. 1,453.82
Couldn't load pickup availability
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO182430
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Length:
- 30mm
- Item Type:
- Plain
Technical
Technical
| d | 18mm |
|---|---|
| D | 24mm |
| L | 30mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 265.258 rpm |
| Max load | 5504.587 kg |
| Housing Tolerance | H7 |
