SKU: WMO-120140-120

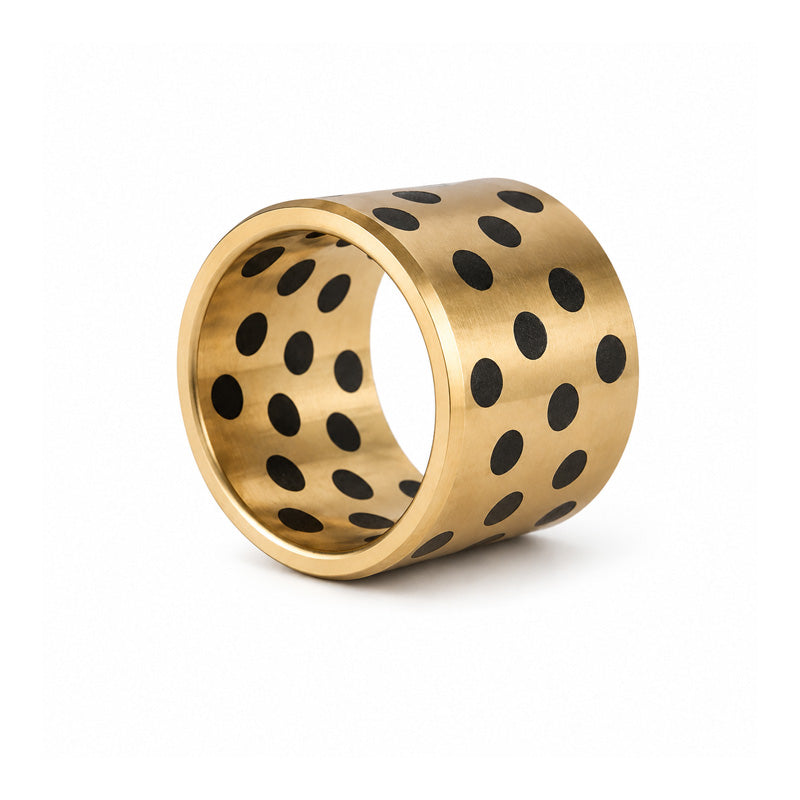

WMO120140120 Plain Oilless Bronze Bush 120x140x120mm - Allow 2-3 Days
WMO120140120 Plain Oilless Bronze Bush 120x140x120mm - Allow 2-3 Days
Regular price
Rs. 70,941.60
Regular price
Sale price
Rs. 70,941.60
Taxes included.
Equivalent to: WMO120140120
In stock
Price Break
5+
Rs. 70,232.18
10+
Rs. 67,394.52
20+
Rs. 65,975.69
50+
Rs. 63,847.44
100+
Rs. 62,428.61
500+
Rs. 58,881.53
1000+
Rs. 49,659.12
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO120140120
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 140mm
- Length:
- 120mm
- Item Type:
- Plain
Technical
Technical
| d | 120mm |
|---|---|
| D | 140mm |
| L | 120mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 39.789 rpm |
| Max load | 146789 kg |
| Housing Tolerance | H7 |
