SKU: WMG30-3-SKF

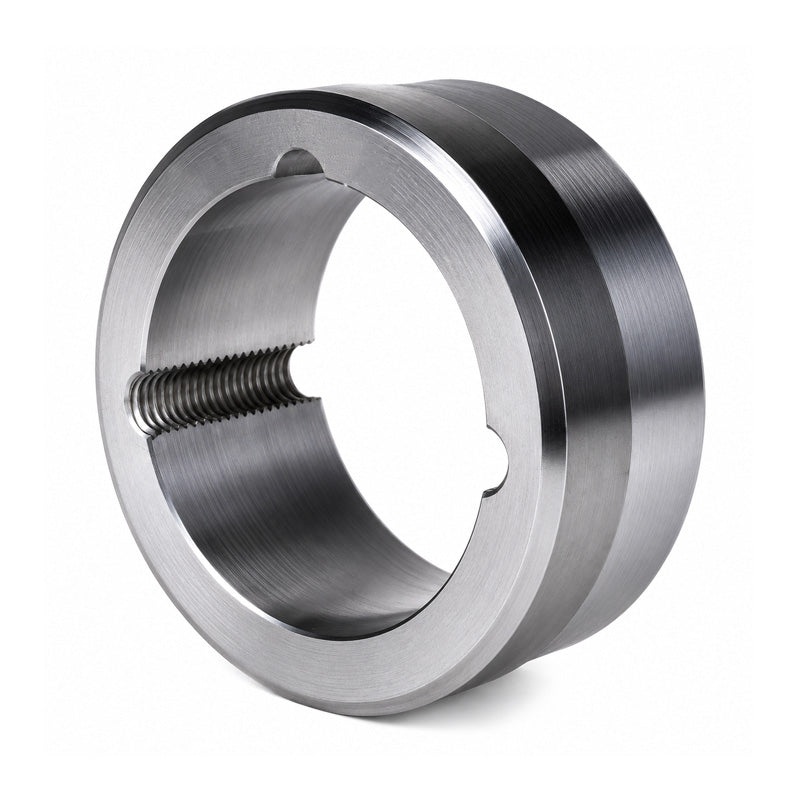

SKF WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 7,123.00
ex VAT
Regular price
Sale price
Rs. 7,123.00
ex VAT
In stock
Price Break
10+
Rs. 6,339.47
19+
Rs. 5,983.32
29+
Rs. 5,912.09
39+
Rs. 5,840.86
49+
Rs. 5,769.63
74+
Rs. 5,698.40
99+
Rs. 5,342.25
199+
Rs. 5,271.02
249+
Rs. 5,199.79
499+
Rs. 5,128.56
999+
Rs. 4,986.10
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3030
- Outside Diameter:
- 152mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WMG30-3 |
|---|---|
| Bush Number | 3030 |
| A | 152mm |
| B | 130mm |
| C | 125mm |
| D | 76mm |
| E | 25mm |
| F | 19mm |
| F1 | 25mm |
| X | 25mm |
