SKU: WMG16-1-SKF

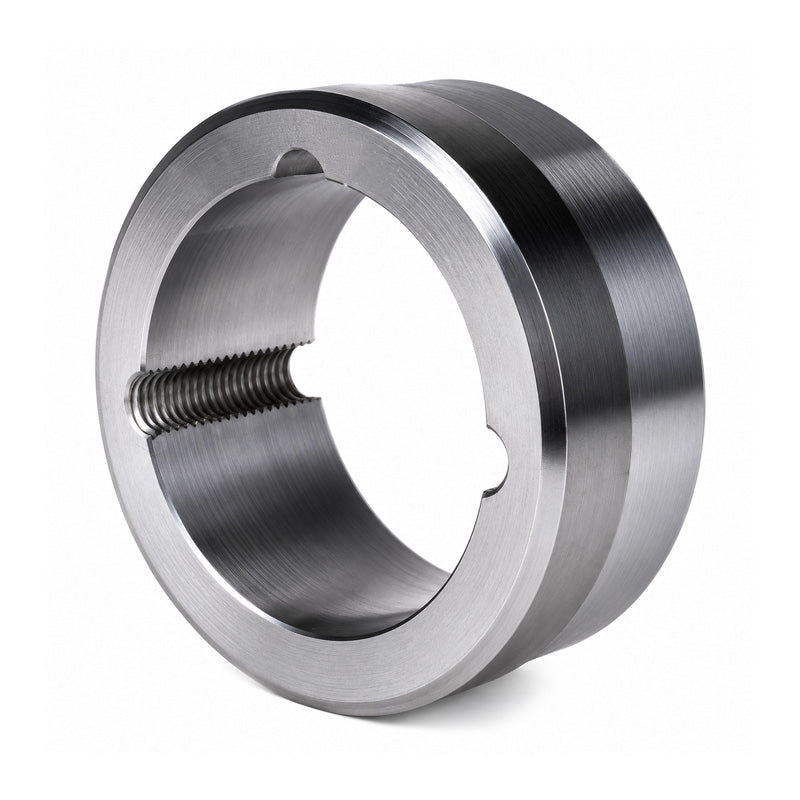

SKF WMG16-1 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG16-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 1,879.98
ex VAT
Regular price
Sale price
Rs. 1,879.98
ex VAT
In stock
Price Break
10+
Rs. 1,673.18
19+
Rs. 1,579.18
29+
Rs. 1,560.38
39+
Rs. 1,541.58
49+
Rs. 1,522.78
74+
Rs. 1,503.98
99+
Rs. 1,409.99
199+
Rs. 1,391.19
249+
Rs. 1,372.39
499+
Rs. 1,353.59
999+
Rs. 1,315.99
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 1610
- Outside Diameter:
- 83mm
- Width:
- 26mm
Technical
Technical
| Hub Reference | WMG16-1 |
|---|---|
| Bush Number | 1610 |
| A | 83mm |
| B | 70mm |
| C | 68mm |
| D | 26mm |
| E | 9mm |
| F | 10mm |
| F1 | 9mm |
| X | 9mm |
