SKU: WMB.160165100

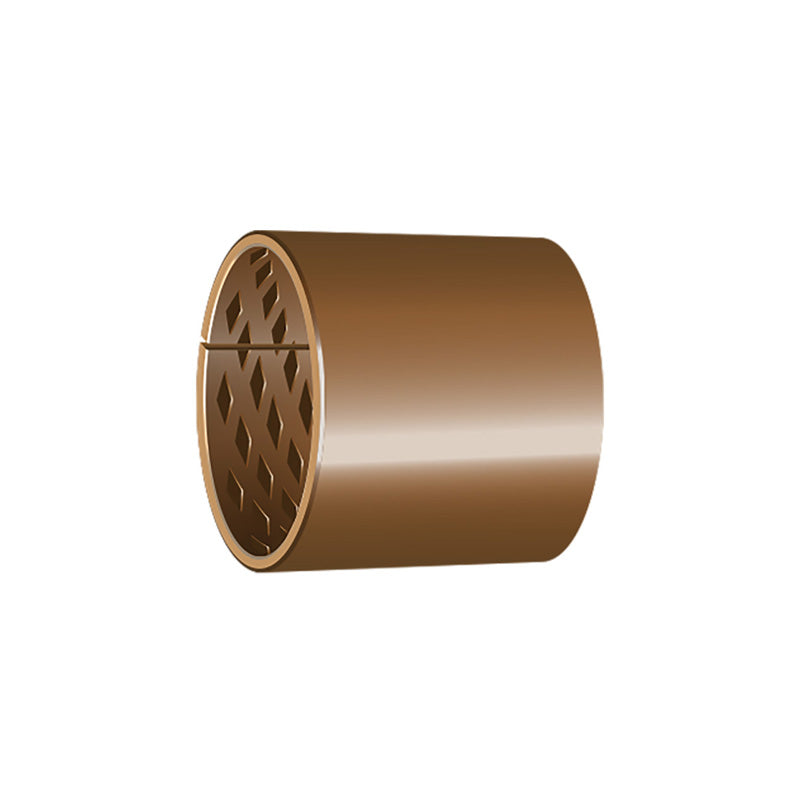

WMB160165100 Metric Wrapped Bronze Plain Bush 160x165x100mm
WMB160165100 Metric Wrapped Bronze Plain Bush 160x165x100mm
Regular price
Rs. 8,440.53
ex VAT
Regular price
Sale price
Rs. 8,440.53
ex VAT
In stock
Price Break
5+
Rs. 8,356.12
10+
Rs. 8,018.50
20+
Rs. 7,849.69
50+
Rs. 7,596.48
100+
Rs. 7,427.67
500+
Rs. 7,005.64
1000+
Rs. 5,908.37
Couldn't load pickup availability
Description
Description
Wrapped Bronze Plain Bushes These bushes are wrapped in homogenous bronze. These bushes are capable of high levels of thermal conductivity, high load capacities and also they have chemical resistance. Due to the slit along the length of the bush, they are very easy to install. Also, the through holes allow for easy lubrication.
Benefits: Easy installation, high load capacity, excellent wear resistance with lower friction.
- Brand / Quality:
- Simply Wrapped Bronze Bushes - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 165mm
- Length:
- 100mm
Technical
Technical
| Inside Diameter (d) | 160mm |
|---|---|
| Outside Diameter (D) | 165mm |
| Length (B) | 100mm |
| Length Min | 99.5mm |
| Length Max | 100.5mm |
| PV | 2.8 max N/mm squared x m/s |
| Dynamic Load | 40 max N/mm squared |
| Intermittent Temperature | 130 max Deg C |
| Thermal Conductivity | 60 W/mk |
| Hardness | 90-120 HB |
| Yield Point | 250 min N/mm squared |
| Static Load | 120 max N/mm squared |
| Sliding speed - With Grease | 2.5 max m/s |
| Operating Temperature | -100 to 200 Deg C |
| Coefficient of Friction | 0.08 to 0.25 |
| Tensile Strength | 450 min N/mm squared |
| Elongation | 40 Percent |
| Recommended Housing Size Min | 165mm |
| Recommended Housing Size Max | 165.04mm |
| Shaft Diameter Min | 159.917mm |
| Shaft Diameter Max | 159.957mm |
| Inside Diameter When Fitted Min | 160mm |
| Inside Diameter When Fitted Max | 160.1mm |
