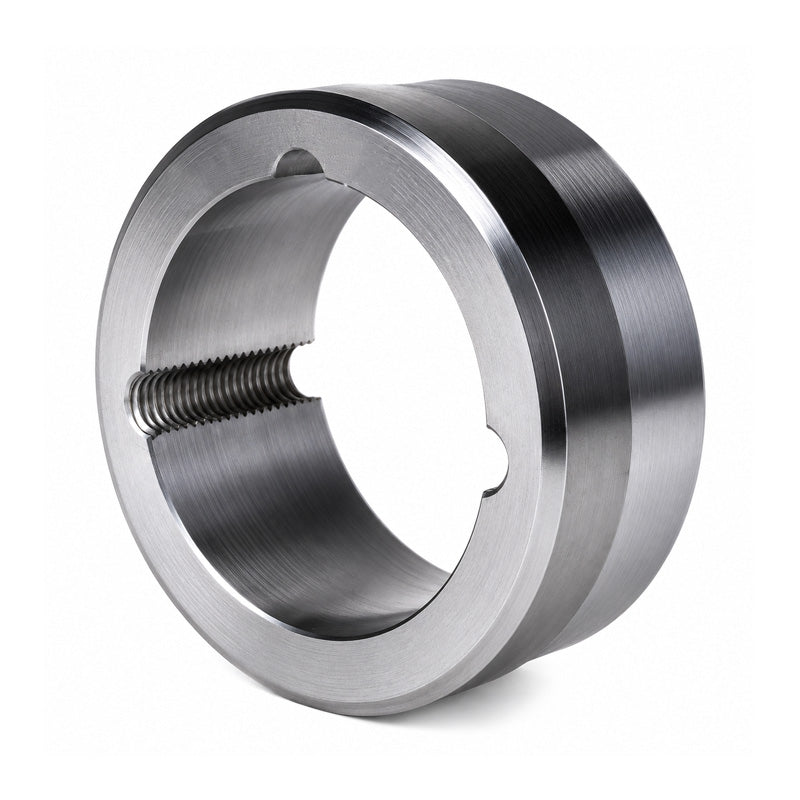

SKF WHG45-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG45-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 16,898.42
ex VAT
Regular price
Sale price
Rs. 16,898.42
ex VAT
In stock
Price Break
10+
Rs. 15,039.59
19+
Rs. 14,194.67
29+
Rs. 14,025.69
39+
Rs. 13,856.70
49+
Rs. 13,687.72
74+
Rs. 13,518.74
99+
Rs. 12,673.82
199+
Rs. 12,504.83
249+
Rs. 12,335.85
499+
Rs. 12,166.86
999+
Rs. 11,828.89
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4545
- Outside Diameter:
- 210mm
- Width:
- 114mm
Technical
Technical
| Hub Reference | WHG45-2 |
|---|---|
| Bush Number | 4545 |
| A | 210mm |
| B | 200mm |
| C | 199.5mm |
| D | 114mm |
| E | 40mm |
| F | 30mm |
| F1 | 38mm |
| X | 38mm |
