SKU: WHG40-2-SKF

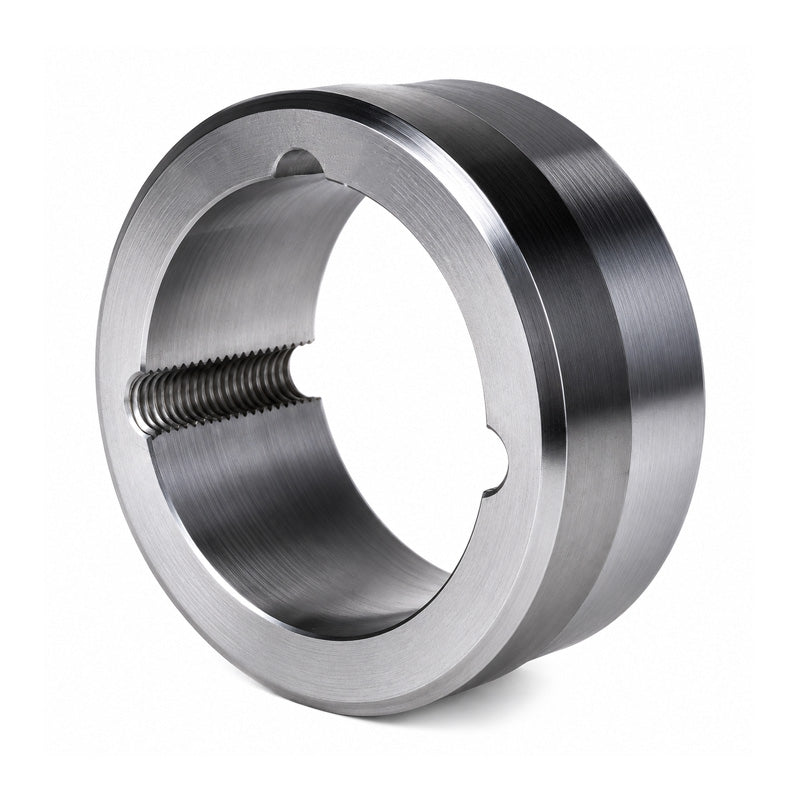

SKF WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 16,129.90
ex VAT
Regular price
Sale price
Rs. 16,129.90
ex VAT
In stock
Price Break
10+
Rs. 14,355.61
19+
Rs. 13,549.12
29+
Rs. 13,387.82
39+
Rs. 13,226.52
49+
Rs. 13,065.22
74+
Rs. 12,903.92
99+
Rs. 12,097.43
199+
Rs. 11,936.13
249+
Rs. 11,774.83
499+
Rs. 11,613.53
999+
Rs. 11,290.93
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4040
- Outside Diameter:
- 200mm
- Width:
- 101mm
Technical
Technical
| Hub Reference | WHG40-2 |
|---|---|
| Bush Number | 4040 |
| A | 200mm |
| B | 190mm |
| C | 189.5mm |
| D | 101mm |
| E | 32mm |
| F | 30mm |
| F1 | 34mm |
| X | 34mm |
