SKU: WHG40-1-SKF

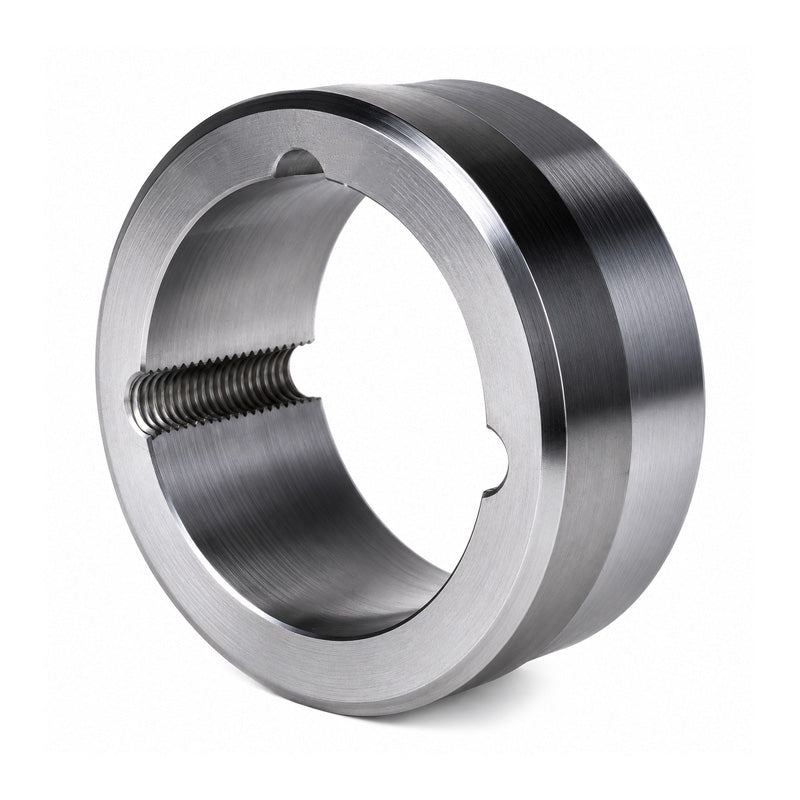

SKF WHG40-1 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG40-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 12,247.32
ex VAT
Regular price
Sale price
Rs. 12,247.32
ex VAT
In stock
Price Break
10+
Rs. 10,900.11
19+
Rs. 10,287.75
29+
Rs. 10,165.28
39+
Rs. 10,042.80
49+
Rs. 9,920.33
74+
Rs. 9,797.86
99+
Rs. 9,185.49
199+
Rs. 9,063.02
249+
Rs. 8,940.54
499+
Rs. 8,818.07
999+
Rs. 8,573.12
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4030
- Outside Diameter:
- 200mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WHG40-1 |
|---|---|
| Bush Number | 4030 |
| A | 200mm |
| B | 190mm |
| C | 189mm |
| D | 76mm |
| E | 32mm |
| F | 30mm |
| F1 | 25mm |
| X | 25mm |
