SKU: WHG35-MB

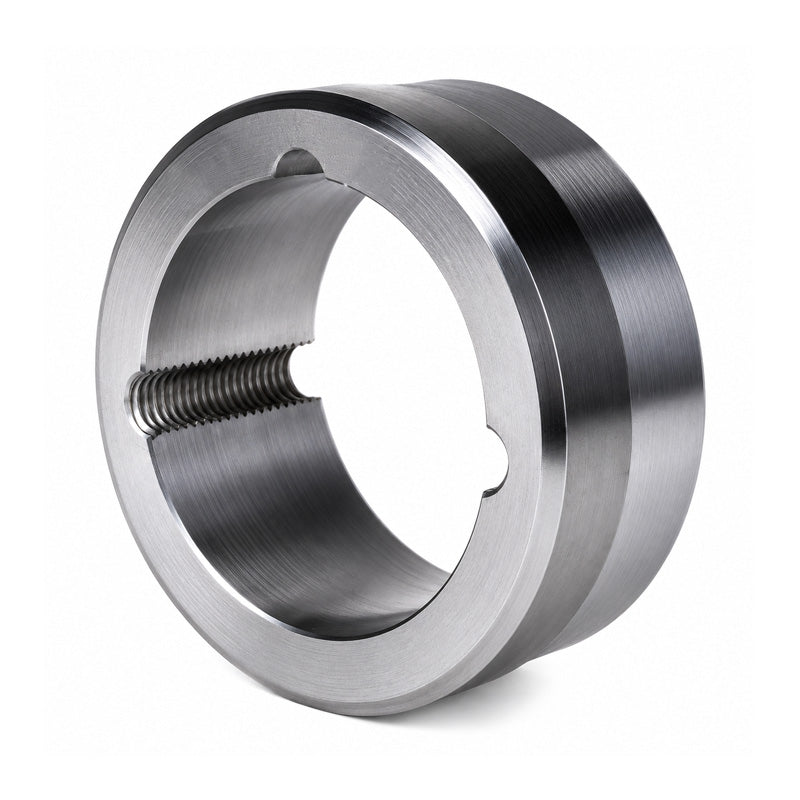

Major Brand WHG35 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WHG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 9,820.32
Regular price
Sale price
Rs. 9,820.32
Taxes included.
In stock
Price Break
10+
Rs. 8,740.08
19+
Rs. 8,249.07
29+
Rs. 8,150.87
39+
Rs. 8,052.66
49+
Rs. 7,954.46
74+
Rs. 7,856.26
99+
Rs. 7,365.24
199+
Rs. 7,267.04
249+
Rs. 7,168.83
499+
Rs. 7,070.63
999+
Rs. 6,874.22
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 3525
- Outside Diameter:
- 190mm
- Width:
- 65mm
Technical
Technical
| Hub Reference | WHG35 |
|---|---|
| Bush Number | 3525 |
| A | 190mm |
| B | 180mm |
| C | 179.5mm |
| D | 65mm |
| E | 25mm |
| F | 25mm |
| F1 | 22mm |
| X | 22mm |
