SKU: W19-SKF

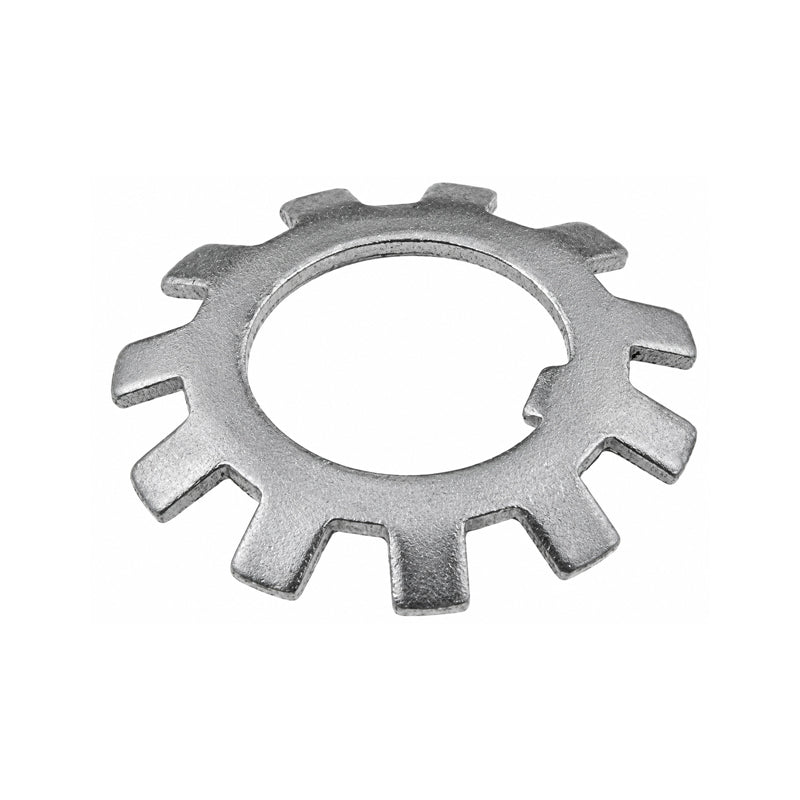

SKF W19 Locking Tab Washer 3.8x5.219x0.084 inch
SKF W19 Locking Tab Washer 3.8x5.219x0.084 inch
Regular price
Rs. 2,239.05
Regular price
Sale price
Rs. 2,239.05
Taxes included.
In stock
Price Break
10+
Rs. 1,992.75
19+
Rs. 1,880.80
29+
Rs. 1,858.41
39+
Rs. 1,836.02
49+
Rs. 1,813.63
74+
Rs. 1,791.24
99+
Rs. 1,679.29
199+
Rs. 1,656.90
249+
Rs. 1,634.51
499+
Rs. 1,612.12
999+
Rs. 1,567.34
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 96.52mm = 3.8 inch
Technical
Technical

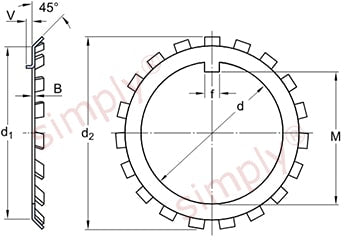

| d | 3.8 inch |
|---|---|
| d<sub>1</sub> | 4.593 inch |
| d<sub>2</sub> | 5.219 inch |
| B | 0.084 inch |
| f | 0.353 inch |
| M | 3.636 inch |
| V | 0.188 inch |
| Mass | 0.0771 kg |
