SKU: W10-SKF

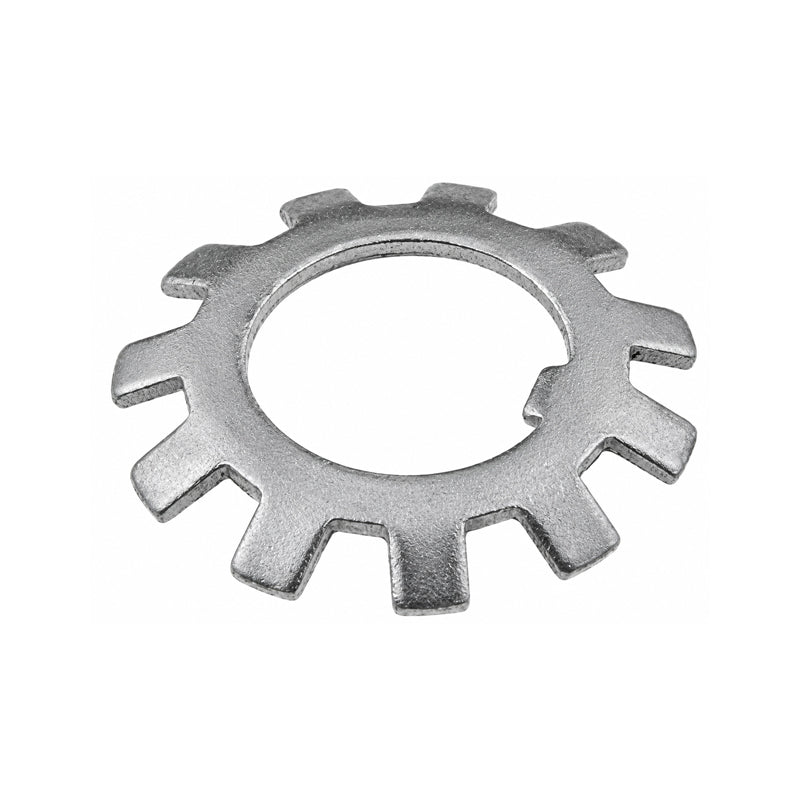

SKF W10 Locking Tab Washer 1.992x2.922x0.048 inch
SKF W10 Locking Tab Washer 1.992x2.922x0.048 inch
Regular price
Rs. 841.77
ex VAT
Regular price
Sale price
Rs. 841.77
ex VAT
In stock
Price Break
5+
Rs. 833.35
10+
Rs. 799.68
20+
Rs. 782.85
50+
Rs. 757.59
100+
Rs. 740.76
500+
Rs. 698.67
1000+
Rs. 589.24
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.60mm = 1.992 inch
Technical
Technical
| d | 1.992 inch |
|---|---|
| d<sub>1</sub> | 2.468 inch |
| d<sub>2</sub> | 2.922 inch |
| B | 0.048 inch |
| f | 0.29 inch |
| M | 1.887 inch |
| V | 0.125 inch |
| Mass | 0.0181 kg |
