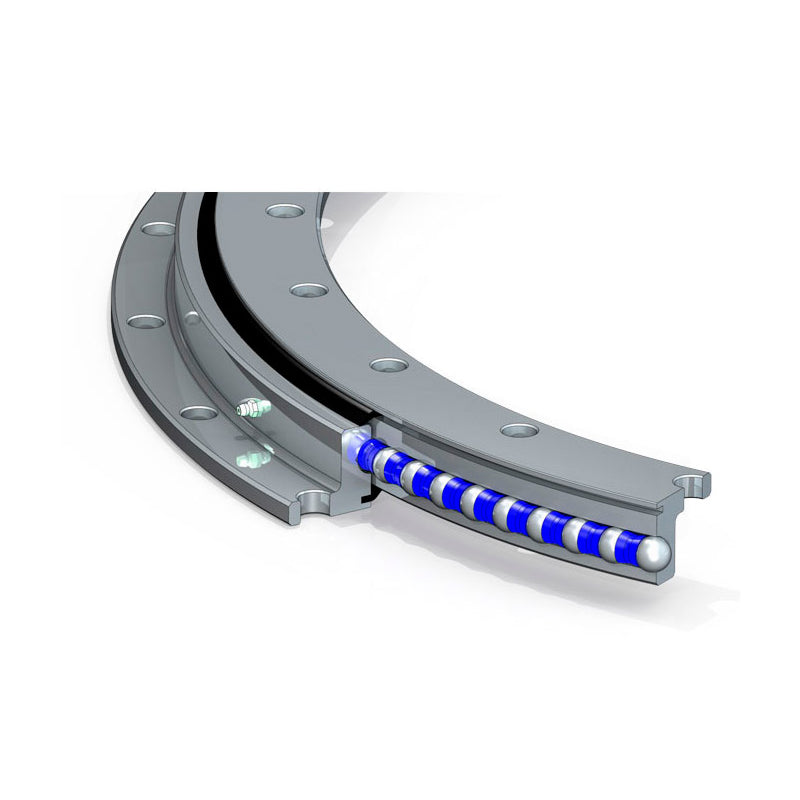

Major Brand VLU200844 Four Point Contact Slewing Ring Bearing 734x948x56mm - Allow 2-3 Days
Major Brand VLU200844 Four Point Contact Slewing Ring Bearing 734x948x56mm - Allow 2-3 Days
Regular price
Rs. 196,868.54
Regular price
Sale price
Rs. 196,868.54
Taxes included.
In stock
Price Break
10+
Rs. 175,213.00
19+
Rs. 165,369.57
29+
Rs. 163,400.89
39+
Rs. 161,432.20
49+
Rs. 159,463.52
74+
Rs. 157,494.83
99+
Rs. 147,651.41
199+
Rs. 145,682.72
249+
Rs. 143,714.03
499+
Rs. 141,745.35
999+
Rs. 137,807.98
Description
Description
Slewing Ring Bearings: Also known as turntable bearings, these are large mechanical bearings designed to support heavy loads while allowing rotational movement. They are commonly used in machinery where one part must rotate relative to another, often under heavy axial, radial, and moment loads simultaneously.
These slewing ring bearings are commonly used in construction equipment, wind turbines, rotating platforms and stages, offshore and marine equipment, industrial turntables and robotics.
Benefits: Versatile application range, high load-bearing capability, compact and lightweight design
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 734mm
- Outside Diameter:
- 948mm
- Width:
- 56mm
- Style:
- VLU
Technical
Technical
| --- | Main Dimensions & Performance Data |
|---|---|
| di - Inner diameter inner ring | 734mm |
| Inner diameter inner ring lower tolerance | 0mm |
| Inner diameter inner ring upper tolerance | 0.6mm |
| H - Height | 56mm |
| Da - Outside Diameter | 948mm |
| Outside diameter lower tolerance | -0.6mm |
| Outside diameter upper tolerance | 0mm |
| T - Length centering outer ring | 12mm |
| t - Length centering inner ring | 12mm |
| ha - Width outer ring | 44.5mm |
| hi - Width inner ring | 44.5mm |
| Weight | 48.01 kg |
| --- | Dimensions |
| Di - Inner diameter outer ring | 845.5mm |
| Inner diameter outer ring upper tolerance | 0.6mm |
| Inner diameter outer ring lower tolerance | 0mm |
| da - Outside diameter inner ring | 842.5mm |
| Outside diameter inner ring upper tolerance | 0mm |
| Outside diameter inner ring lower tolerance | -0.6mm |
| dB - Fixing bore | 18mm |
| La - Pitchcircle diameter fixing holes outer ring | 920mm |
| na - Number of fixing holes in outer ring | 14 |
| Li - Pitch circle diameter fixing holes inner ring | 762mm |
| ni - Number of fixing holes in inner ring | 18 |
| Fr zul - Max. radial load fixing screws (friction locking) | 109200 N |
| hA - Ring cross section | 20mm |
| --- | Temperature Range |
| Tmin - Operating temperature min. | -25 Deg C |
| Tmax - Operating temperature max. | 80 Deg C |
| --- | Calculation Factors |
| Ca - Basic dynamic load rating, axial | 180000 N |
| C0a - Basic static load rating, axial | 600000 N |
| Cr - Basic dynamic load rating, radial (for radial load only) | 163000 N |
| C0r - Basic static load rating, radial (for radial load only) | 224000 N |
