SKU: USSP209CO-SNR

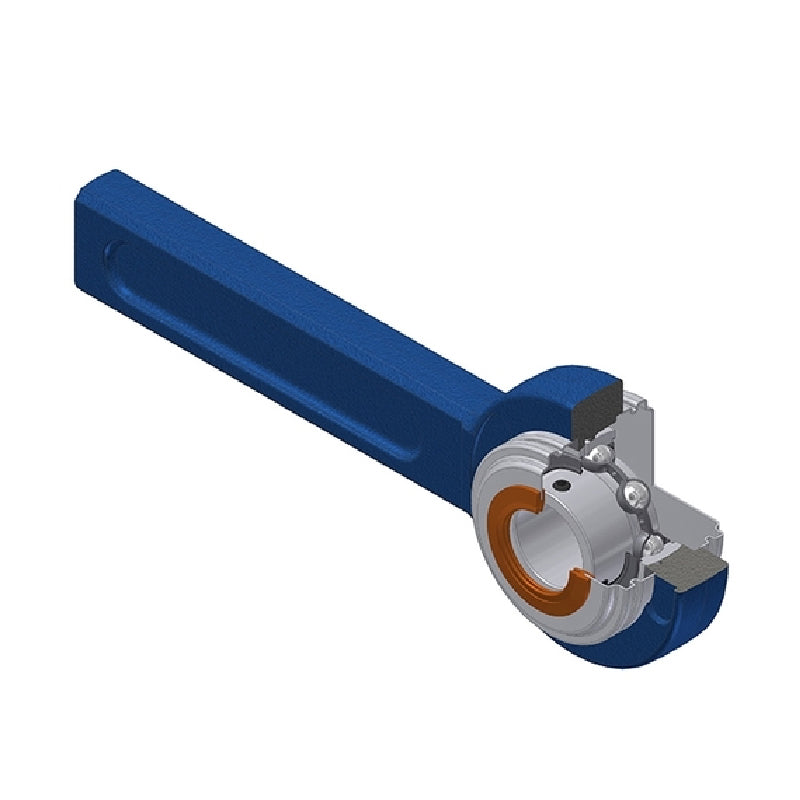

SNR USSP209CO Metric Cast Iron Tensioner Unit with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USSP209CO Metric Cast Iron Tensioner Unit with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
Rs. 19,759.73
ex VAT
Regular price
Sale price
Rs. 19,759.73
ex VAT
In stock
Price Break
5+
Rs. 19,562.13
10+
Rs. 18,771.74
20+
Rs. 18,376.55
50+
Rs. 17,783.76
100+
Rs. 17,388.56
500+
Rs. 16,400.58
1000+
Rs. 13,831.81
Couldn't load pickup availability
Description
Description
USSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 31mm |
| B | 41.2mm |
| H | 120mm |
| H2 | 61mm |
| L | 320mm |
| L1 | 260mm |
| S | 10.2mm |
| Dz | 95mm |
| Z | 69.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR21 |
| Stretcher frame 3 | SPR22 |
| Stretcher frame 4 | SPR24 |
| Mass | 3.908 kg |
