SKU: USPH208CO-SNR
SNR USPH208CO Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USPH208CO Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
Rs. 9,932.98
Regular price
Sale price
Rs. 9,932.98
Taxes included.
In stock
Price Break
5+
Rs. 9,833.65
10+
Rs. 9,436.33
20+
Rs. 9,237.67
50+
Rs. 8,939.68
100+
Rs. 8,741.02
500+
Rs. 8,244.37
1000+
Rs. 6,953.09
Description
Description

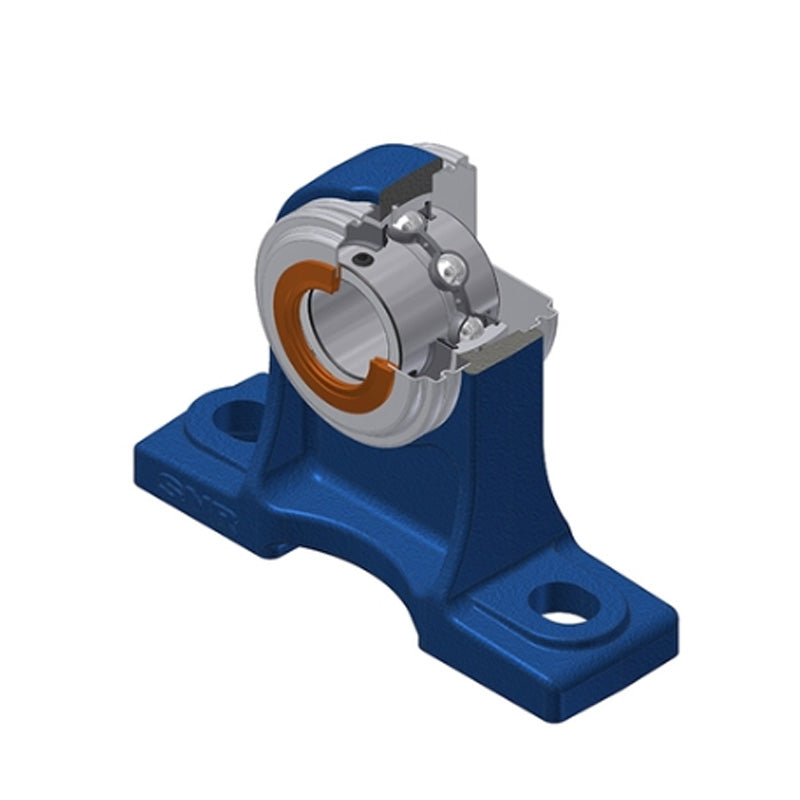

USPH200 Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USPH
- Bolt Hole Centres:
- 34mm
Technical
Technical

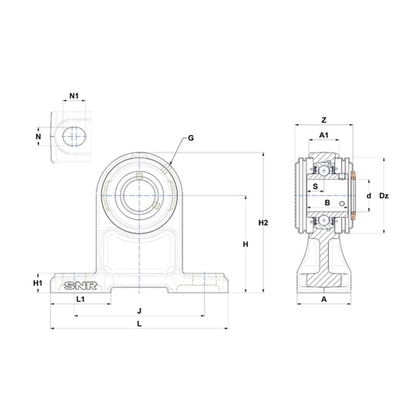

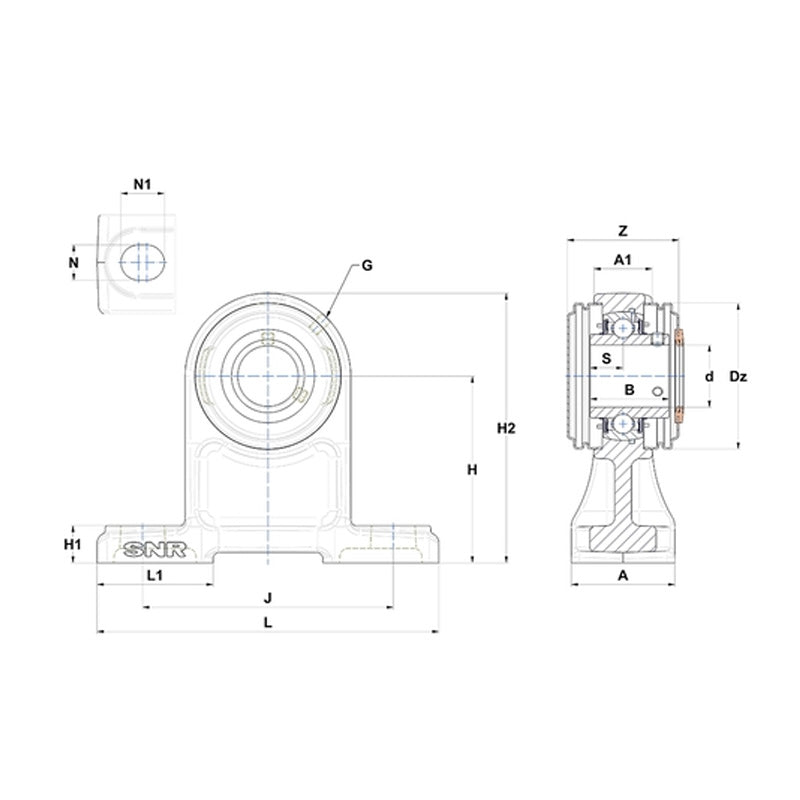

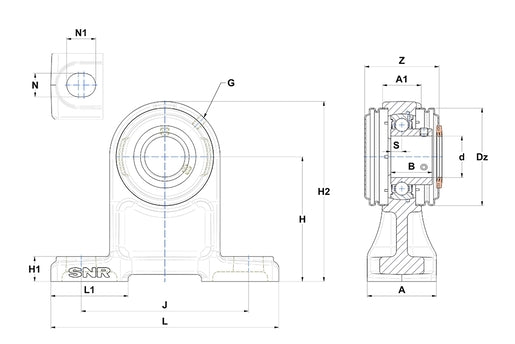

| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 70mm |
| A1 | 34mm |
| B | 34mm |
| H | 100mm |
| H1 | 19mm |
| H2 | 149mm |
| J | 137mm |
| L | 184mm |
| L1 | 58mm |
| N | 17mm |
| N1 | 25mm |
| S | 9mm |
| Dz | 88mm |
| Z | 69.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.844 kg |
