SKU: USPE212CC-SNR
SNR USPE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USPE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
Rs. 17,014.97
Regular price
Sale price
Rs. 17,014.97
Taxes included.
In stock
Price Break
5+
Rs. 16,844.82
10+
Rs. 16,164.22
20+
Rs. 15,823.92
50+
Rs. 15,313.47
100+
Rs. 14,973.17
500+
Rs. 14,122.43
1000+
Rs. 11,910.48
Description
Description

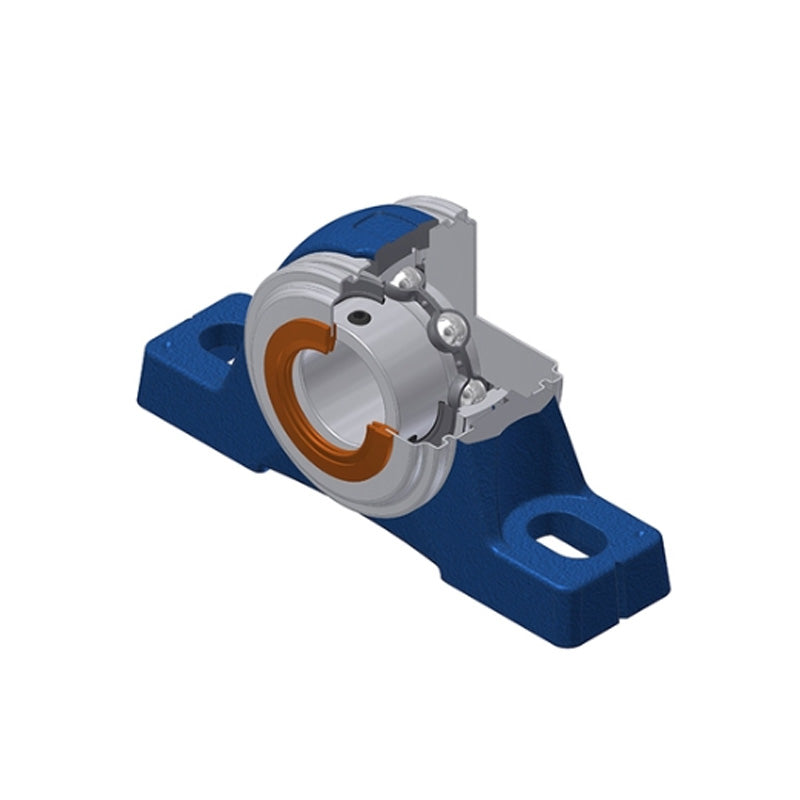

USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USPE
- Bolt Hole Centres:
- 190mm
Technical
Technical

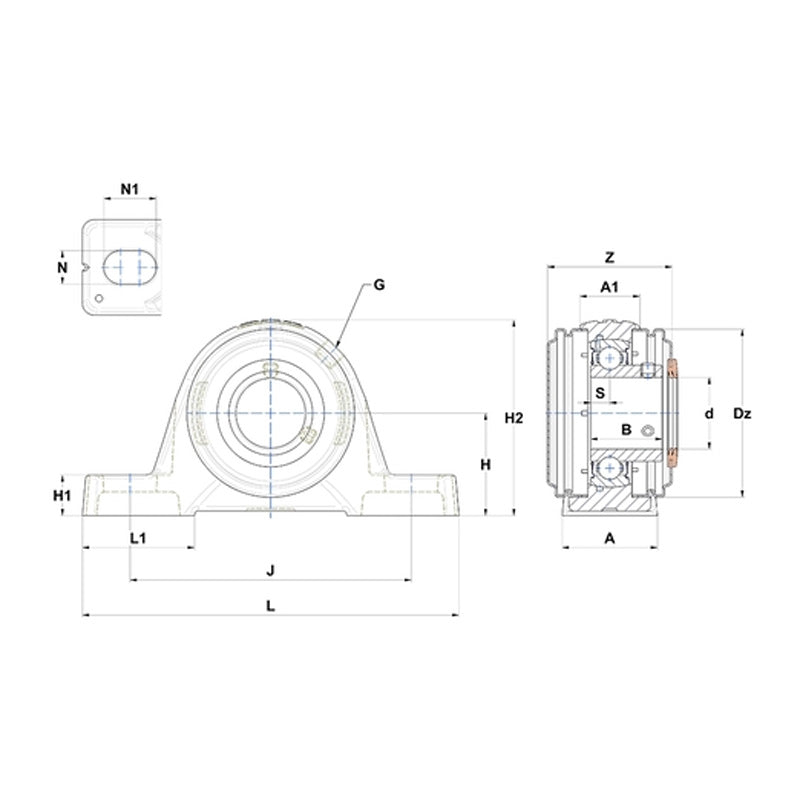

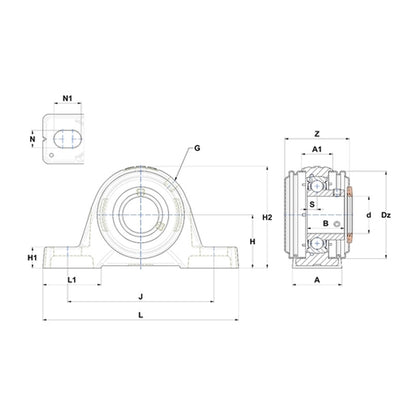

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 60mm |
| A1 | 42mm |
| B | 53.7mm |
| H | 69.9mm |
| H1 | 25mm |
| H2 | 140mm |
| J | 190mm |
| L | 240mm |
| L1 | 71mm |
| N | 18mm |
| N1 | 28mm |
| S | 14.9mm |
| Dz | 120mm |
| Z | 92.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.83 kg |
