SKU: USPE210-SNR

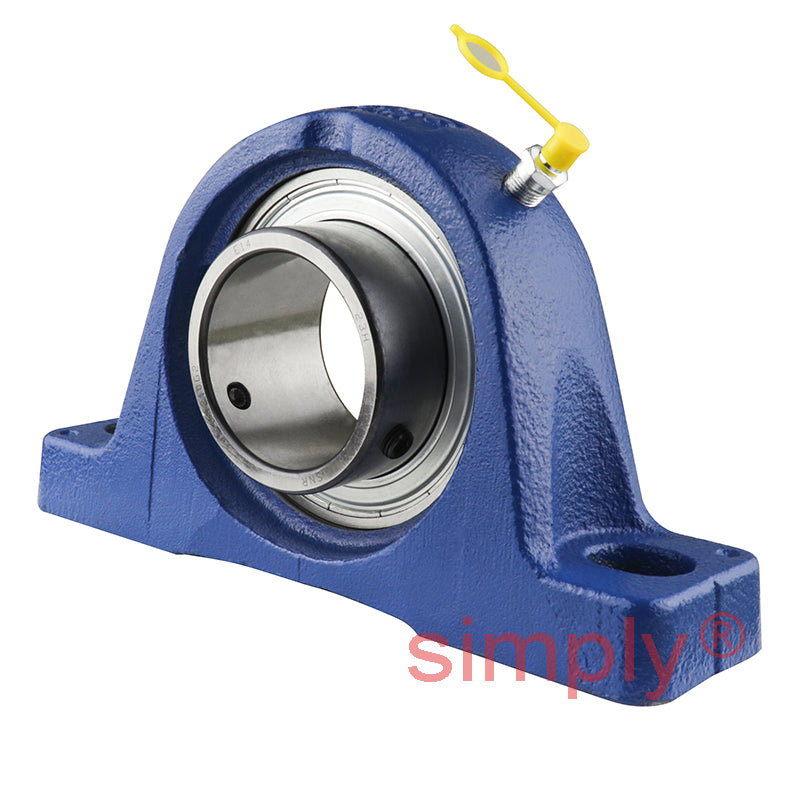

SNR USPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
SNR USPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
Rs. 4,936.40
Regular price
Sale price
Rs. 4,936.40
Taxes included.
In stock
Price Break
10+
Rs. 4,393.40
19+
Rs. 4,146.58
29+
Rs. 4,097.21
39+
Rs. 4,047.85
49+
Rs. 3,998.48
74+
Rs. 3,949.12
99+
Rs. 3,702.30
199+
Rs. 3,652.94
249+
Rs. 3,603.57
499+
Rs. 3,554.21
999+
Rs. 3,455.48
Description
Description
USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPE
- Bolt Hole Centres:
- 158mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 54mm |
| A1 | 34mm |
| B | 43.5mm |
| H | 57.2mm |
| H1 | 21.5mm |
| H2 | 115mm |
| J | 158mm |
| L | 200mm |
| L1 | 61mm |
| N | 18mm |
| N1 | 23mm |
| S | 10.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.56 kg |
