SKU: USP212-36-SNR

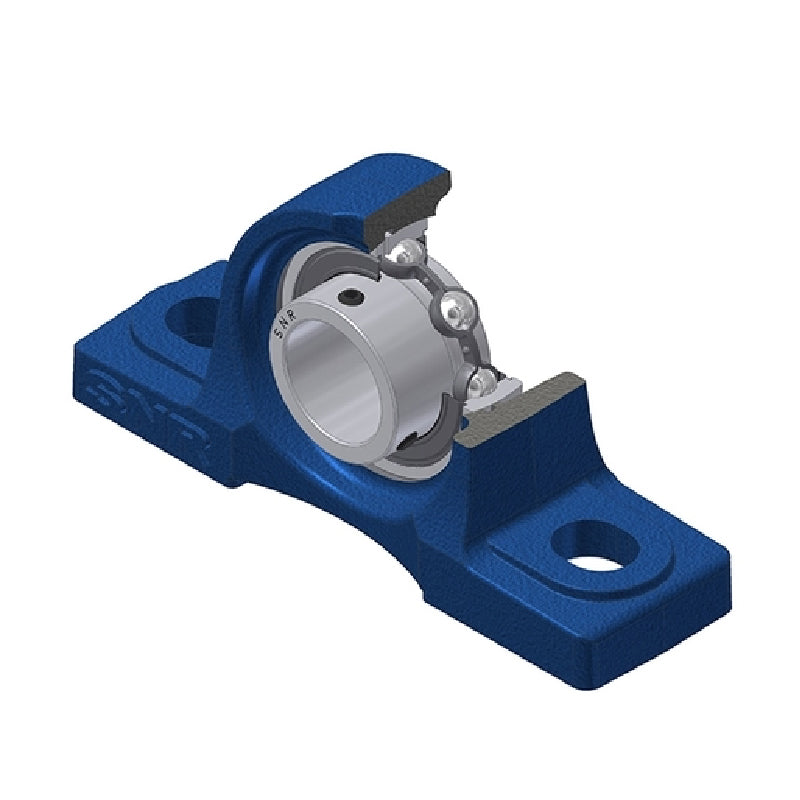

SNR USP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
SNR USP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 9,932.98
Regular price
Sale price
Rs. 9,932.98
Taxes included.
In stock
Price Break
5+
Rs. 9,833.65
10+
Rs. 9,436.33
20+
Rs. 9,237.67
50+
Rs. 8,939.68
100+
Rs. 8,741.02
500+
Rs. 8,244.37
1000+
Rs. 6,953.09
Description
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- USP
- Bolt Hole Centres:
- 184mm
Technical
Technical

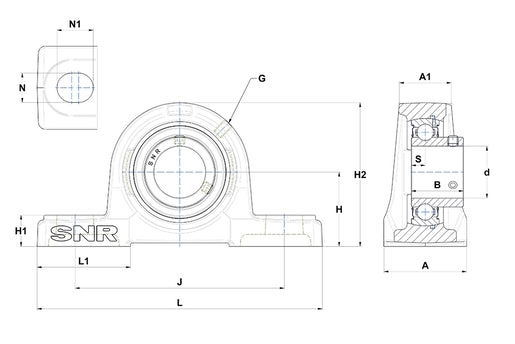

| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-1/4 inch |
| A | 70mm |
| A1 | 44mm |
| B | 53.7mm |
| H | 69.8mm |
| H1 | 25mm |
| H2 | 138mm |
| J | 184mm |
| L | 241mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 14.9mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 4.8 kg |
