• SNR USP211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
  • SNR USP211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 2

SKU: USP211CC-SNR

SNR USP211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USP211CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Rs. 11,345.02
Rs. 11,345.02
Sale Sold out
Taxes included.

In stock

Price Break
5+ Rs. 11,231.57
10+ Rs. 10,777.77
20+ Rs. 10,550.87
50+ Rs. 10,210.52
100+ Rs. 9,983.62
500+ Rs. 9,416.37
1000+ Rs. 7,941.51
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

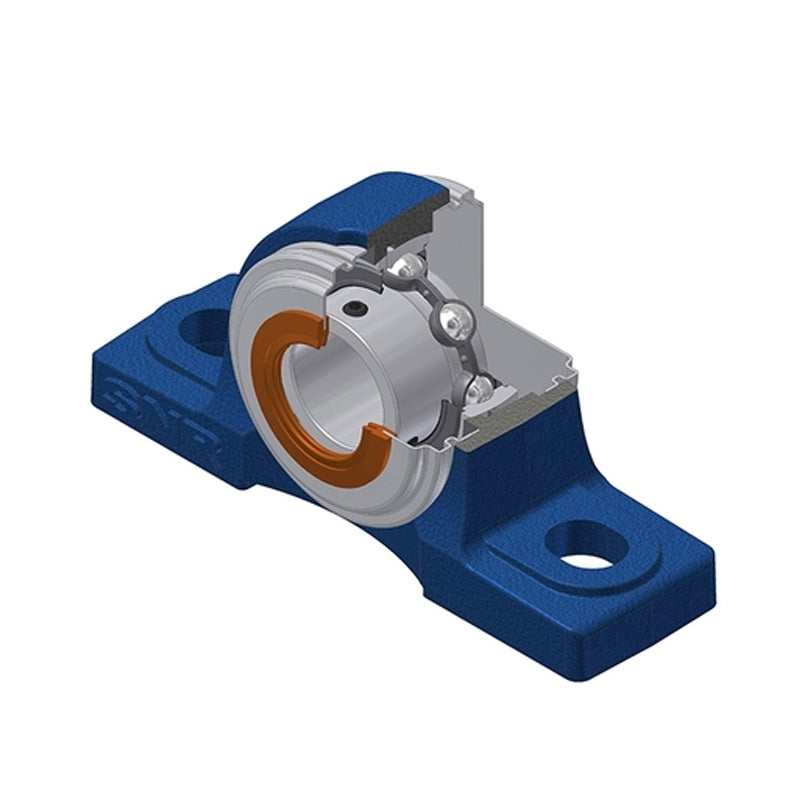

USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
USP
Bolt Hole Centres:
171mm
Technical

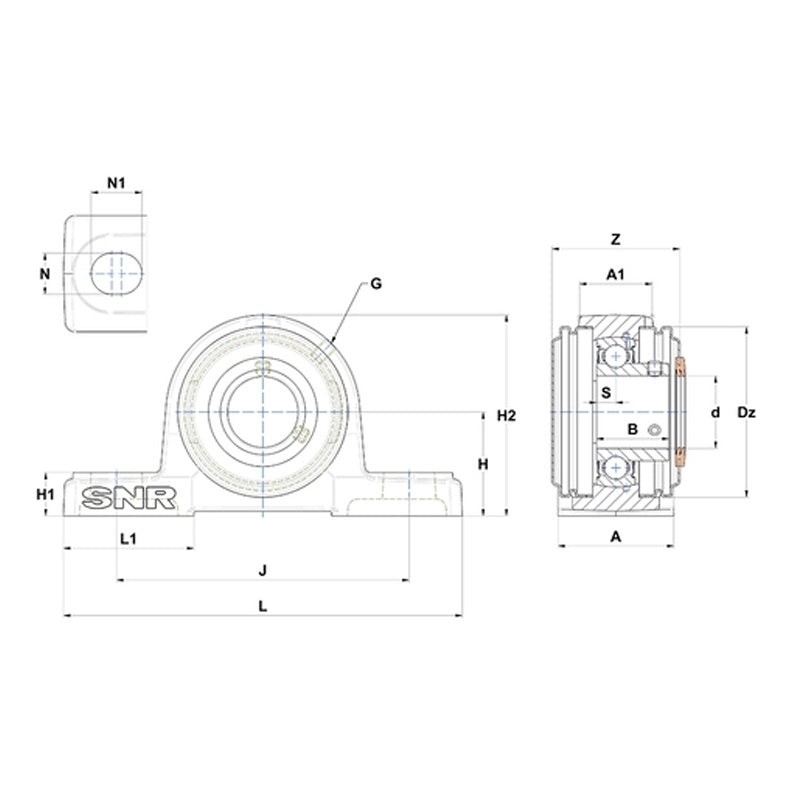

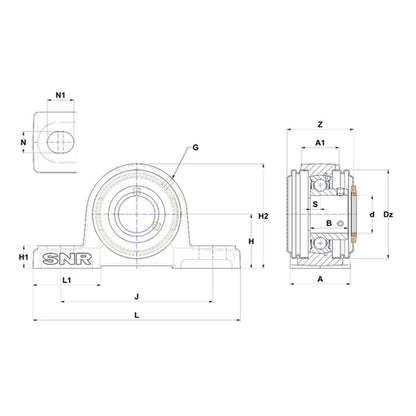

--- Dimensions
Shaft diameter d 55mm
A 60mm
A1 40mm
B 45.3mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 11.8mm
Dz 110mm
Z 77mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.732 kg
