SKU: USP210-30-SNR

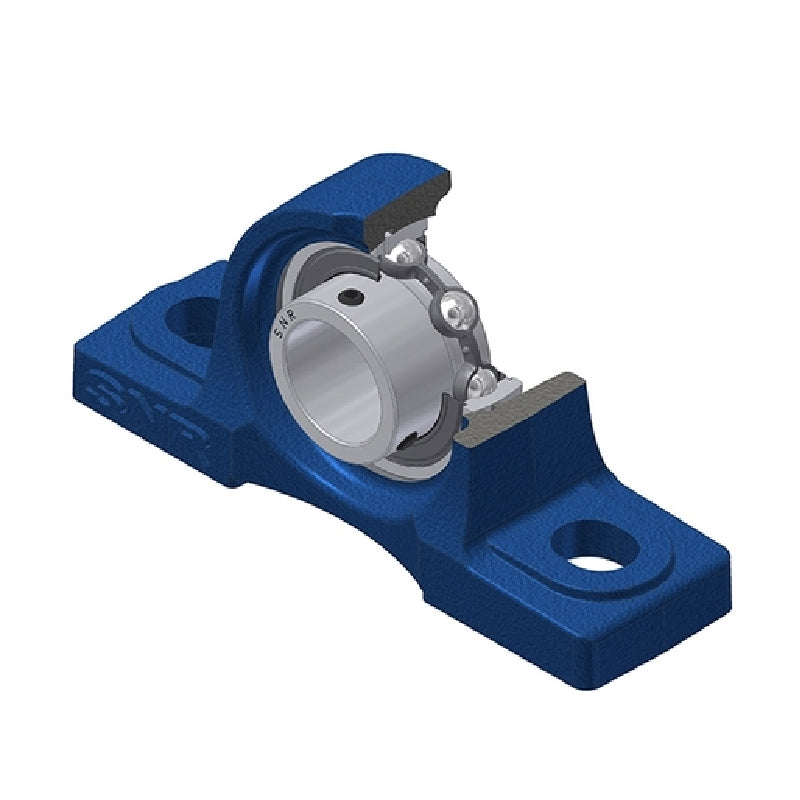

SNR USP210-30 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/8 inch Bore Insert - Allow 2-3 Days
SNR USP210-30 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/8 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 7,089.68
Regular price
Sale price
Rs. 7,089.68
Taxes included.
In stock
Price Break
5+
Rs. 7,018.78
10+
Rs. 6,735.20
20+
Rs. 6,593.40
50+
Rs. 6,380.71
100+
Rs. 6,238.92
500+
Rs. 5,884.43
1000+
Rs. 4,962.78
Description
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- USP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-7/8 inch |
| A | 60mm |
| A1 | 39mm |
| B | 43.5mm |
| H | 57.2mm |
| H1 | 22mm |
| H2 | 114mm |
| J | 159mm |
| L | 206mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 25mm |
| S | 10.9mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 3 kg |
