SKU: USP206-20-SNR

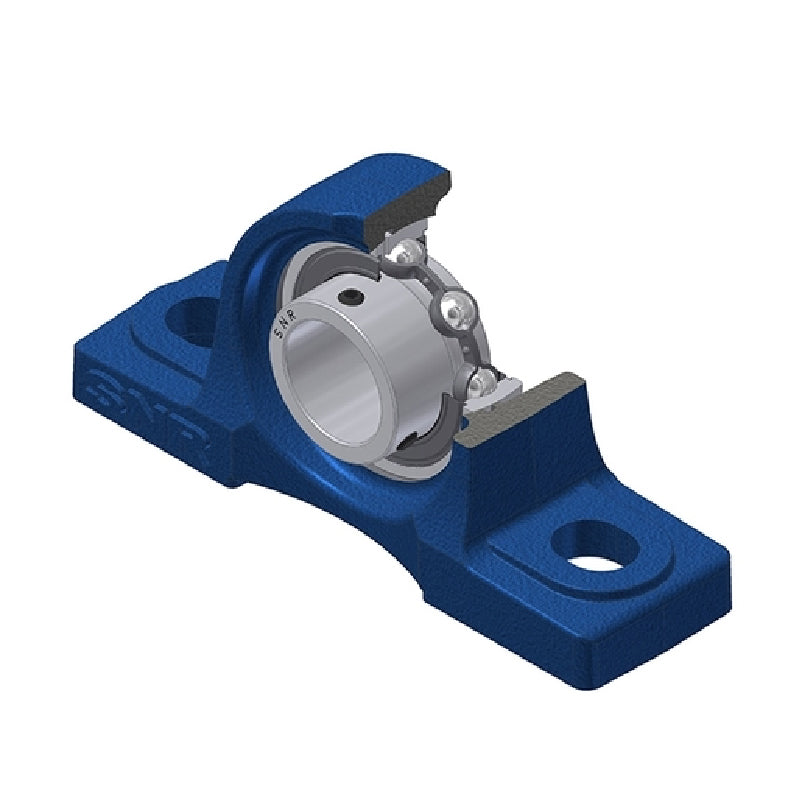

SNR USP206-20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
SNR USP206-20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
Regular price
Rs. 3,016.12
Regular price
Sale price
Rs. 3,016.12
Taxes included.
In stock
Price Break
10+
Rs. 2,684.35
19+
Rs. 2,533.54
29+
Rs. 2,503.38
39+
Rs. 2,473.22
49+
Rs. 2,443.06
74+
Rs. 2,412.90
99+
Rs. 2,262.09
199+
Rs. 2,231.93
249+
Rs. 2,201.77
499+
Rs. 2,171.61
999+
Rs. 2,111.28
Description
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- USP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/4 inch |
| A | 48mm |
| A1 | 30mm |
| B | 30mm |
| H | 42.9mm |
| H1 | 18mm |
| H2 | 83mm |
| J | 121mm |
| L | 165mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 8mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 1.28 kg |
