SKU: USFTE208-SNR

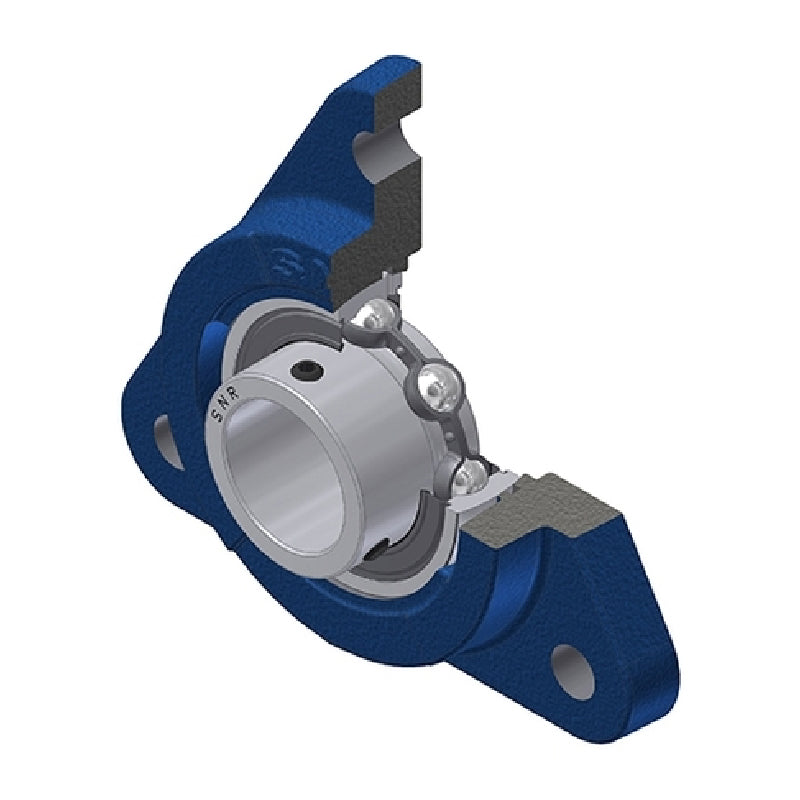

SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
Regular price
Rs. 4,936.40
Regular price
Sale price
Rs. 4,936.40
Taxes included.
In stock
Price Break
10+
Rs. 4,393.40
19+
Rs. 4,146.58
29+
Rs. 4,097.21
39+
Rs. 4,047.85
49+
Rs. 3,998.48
74+
Rs. 3,949.12
99+
Rs. 3,702.30
199+
Rs. 3,652.94
249+
Rs. 3,603.57
499+
Rs. 3,554.21
999+
Rs. 3,455.48
Description
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFTE
- Bolt Hole Centres:
- 140mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 30mm |
| A1 | 16mm |
| A2 | 43.8mm |
| B | 34mm |
| e | 18.8mm |
| H | 153mm |
| H1 | 51mm |
| J | 140mm |
| N | 13.5mm |
| S | 9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.29 kg |
