SKU: USFLZ201-SNR

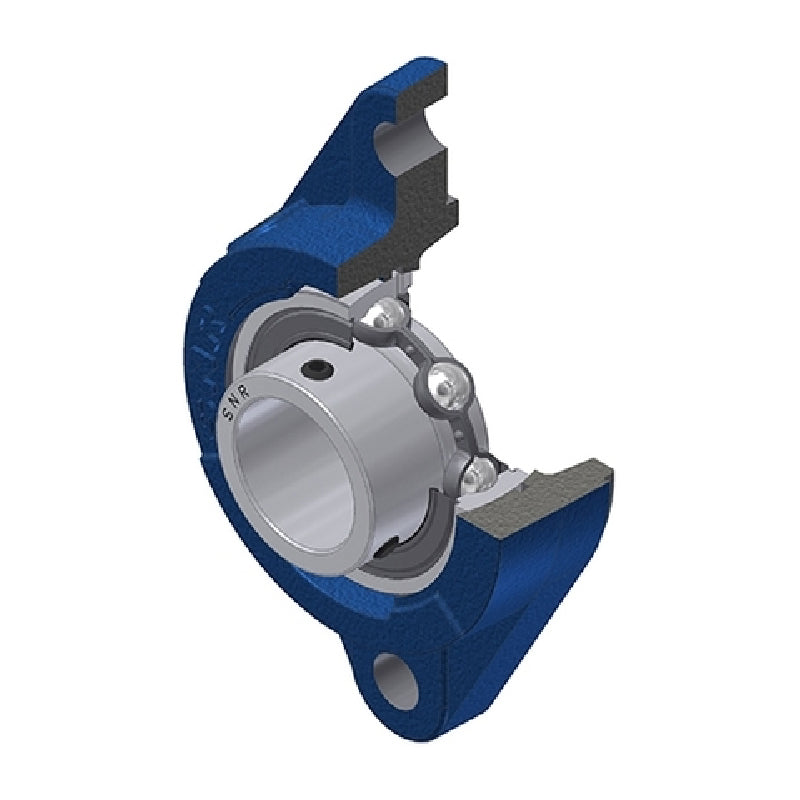

SNR USFLZ201 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
SNR USFLZ201 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 3,401.46
Regular price
Sale price
Rs. 3,401.46
Taxes included.
In stock
Price Break
5+
Rs. 3,367.45
10+
Rs. 3,231.39
20+
Rs. 3,163.36
50+
Rs. 3,061.31
100+
Rs. 2,993.28
500+
Rs. 2,823.21
1000+
Rs. 2,381.02
Description
Description
USFLZ200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- USFLZ
- Bolt Hole Centres:
- 90mm
Technical
Technical

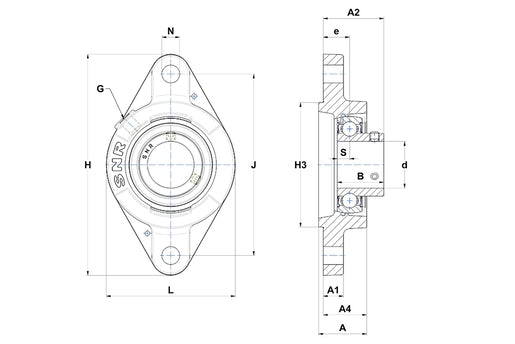

| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 32mm |
| A1 | 10mm |
| A2 | 35mm |
| A4 | 28.5mm |
| B | 22mm |
| e | 19mm |
| H | 112.5mm |
| H3 | 55mm |
| J | 90mm |
| L | 60.5mm |
| N | 11.5mm |
| S | 6mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.49 kg |
