SKU: USFL210N-SNR

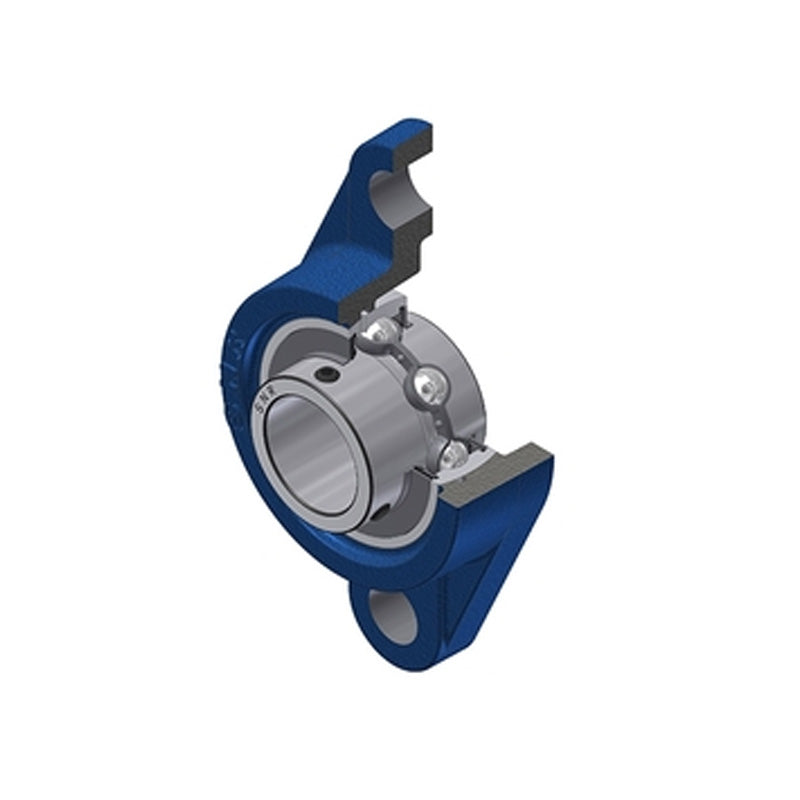

SNR USFL210N Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
SNR USFL210N Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 8,505.57
Regular price
Sale price
Rs. 8,505.57
Taxes included.
In stock
Price Break
5+
Rs. 8,420.51
10+
Rs. 8,080.29
20+
Rs. 7,910.18
50+
Rs. 7,655.01
100+
Rs. 7,484.90
500+
Rs. 7,059.62
1000+
Rs. 5,953.90
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USFL
- Bolt Hole Centres:
- 157mm

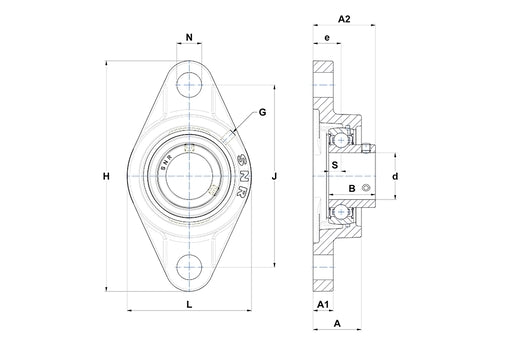

Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 16mm |
| A2 | 54.6mm |
| B | 43.5mm |
| e | 22mm |
| H | 197mm |
| J | 157mm |
| L | 115mm |
| N | 19mm |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.09 kg |
