SKU: USFL203-SNR

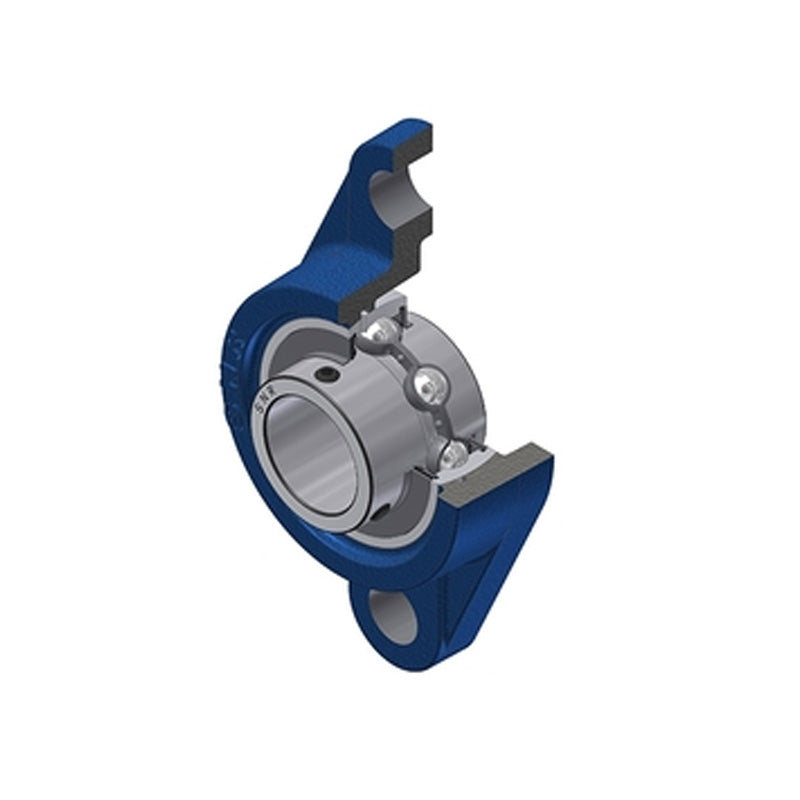

SNR USFL203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
SNR USFL203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,523.25
Regular price
Sale price
Rs. 2,523.25
Taxes included.
In stock
Price Break
10+
Rs. 2,245.69
19+
Rs. 2,119.53
29+
Rs. 2,094.30
39+
Rs. 2,069.07
49+
Rs. 2,043.83
74+
Rs. 2,018.60
99+
Rs. 1,892.44
199+
Rs. 1,867.21
249+
Rs. 1,841.97
499+
Rs. 1,816.74
999+
Rs. 1,766.28
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- USFL
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 17mm |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 31mm |
| B | 22mm |
| e | 15mm |
| H | 99mm |
| J | 76.5mm |
| L | 57mm |
| N | 12mm |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.36 kg |
