SKU: USFE212-SNR

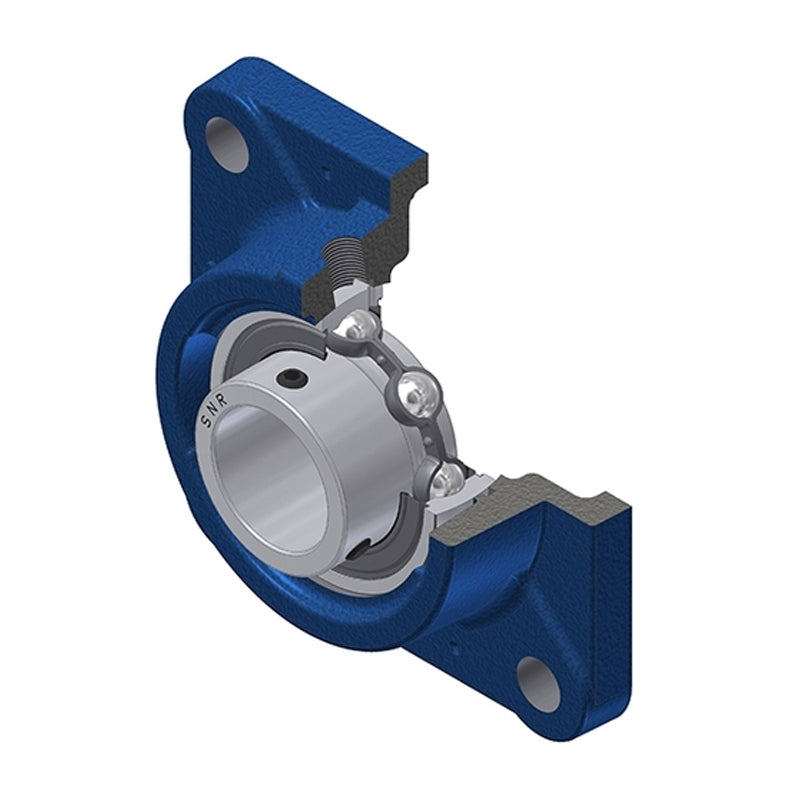

SNR USFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
SNR USFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 7,692.65
Regular price
Sale price
Rs. 7,692.65
Taxes included.
In stock
Price Break
10+
Rs. 6,846.46
19+
Rs. 6,461.83
29+
Rs. 6,384.90
39+
Rs. 6,307.97
49+
Rs. 6,231.05
74+
Rs. 6,154.12
99+
Rs. 5,769.49
199+
Rs. 5,692.56
249+
Rs. 5,615.63
499+
Rs. 5,538.71
999+
Rs. 5,384.86
Description
Description
USFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USFE
- Bolt Hole Centres:
- 143mm
Technical
Technical

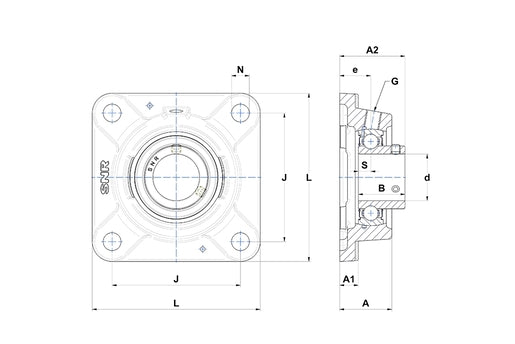

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 53.5mm |
| A1 | 16mm |
| A2 | 72.8mm |
| B | 53.7mm |
| e | 34mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| S | 14.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.63 kg |
