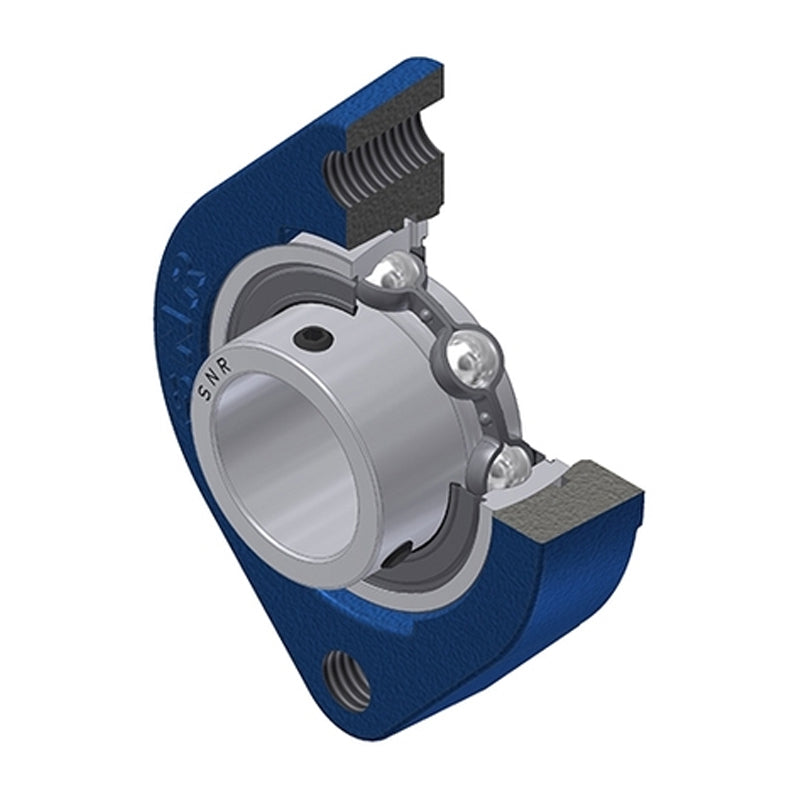

SNR USFD205M12 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
SNR USFD205M12 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,879.14
Regular price
Sale price
Rs. 2,879.14
Taxes included.
In stock
Price Break
10+
Rs. 2,562.43
19+
Rs. 2,418.48
29+
Rs. 2,389.69
39+
Rs. 2,360.89
49+
Rs. 2,332.10
74+
Rs. 2,303.31
99+
Rs. 2,159.36
199+
Rs. 2,130.56
249+
Rs. 2,101.77
499+
Rs. 2,072.98
999+
Rs. 2,015.40
Description
Description
USFD200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USFD
- Bolt Hole Centres:
- 29.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 17.5mm |
| A2 | 29.4mm |
| B | 27mm |
| e | 9.9mm |
| H | 97mm |
| J | 76.2mm |
| L | 71mm |
| N1 | M12 |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.47 kg |
