SKU: USFCE208-SNR

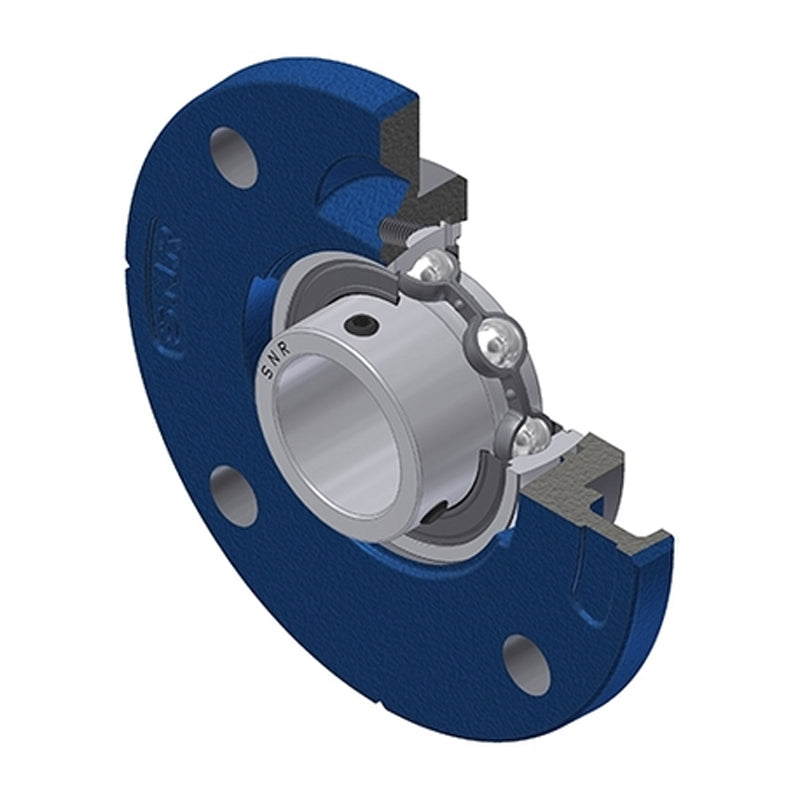

SNR USFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
SNR USFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
Regular price
Rs. 4,689.33
Regular price
Sale price
Rs. 4,689.33
Taxes included.
In stock
Price Break
10+
Rs. 4,173.50
19+
Rs. 3,939.04
29+
Rs. 3,892.14
39+
Rs. 3,845.25
49+
Rs. 3,798.36
74+
Rs. 3,751.46
99+
Rs. 3,517.00
199+
Rs. 3,470.10
249+
Rs. 3,423.21
499+
Rs. 3,376.32
999+
Rs. 3,282.53
Description
Description
USFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFCE
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 23mm |
| A1 | 11.5mm |
| A2 | 24mm |
| A3 | 2mm |
| B | 34mm |
| e | -1mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 11.5mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.6 kg |
