SKU: USFC211-SNR
SNR USFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
SNR USFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
Regular price
Rs. 9,922.73
Regular price
Sale price
Rs. 9,922.73
Taxes included.
In stock
Price Break
5+
Rs. 9,823.50
10+
Rs. 9,426.59
20+
Rs. 9,228.14
50+
Rs. 8,930.46
100+
Rs. 8,732.00
500+
Rs. 8,235.87
1000+
Rs. 6,945.91
Description
Description

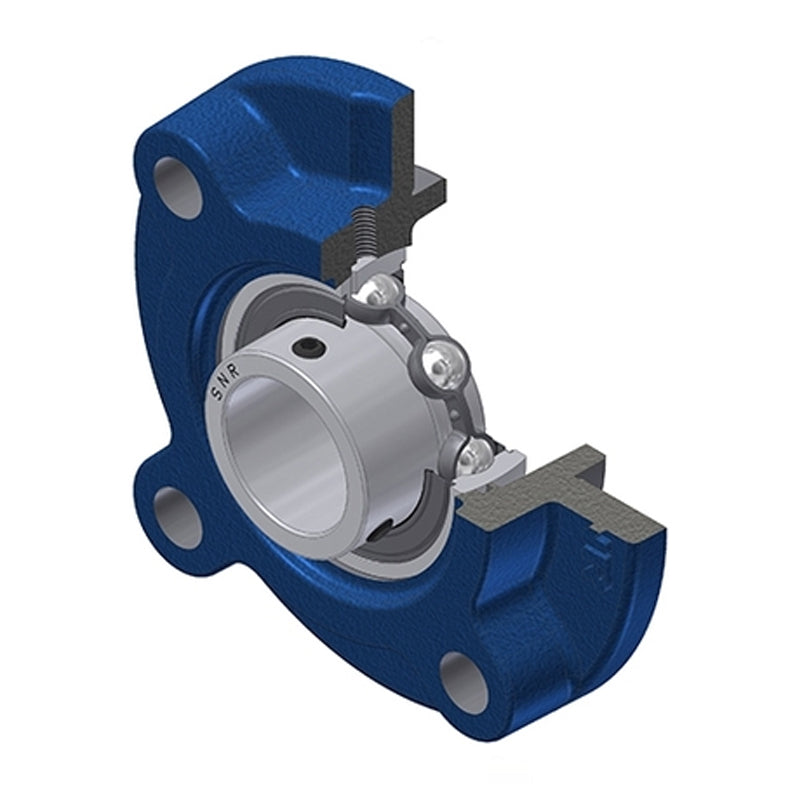

USFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USFC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 42mm |
| A1 | 13mm |
| A2 | 46.5mm |
| A4 | 30mm |
| B | 45.3mm |
| e | 13mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 19mm |
| S | 11.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.78 kg |
