SKU: USFC207N-SNR

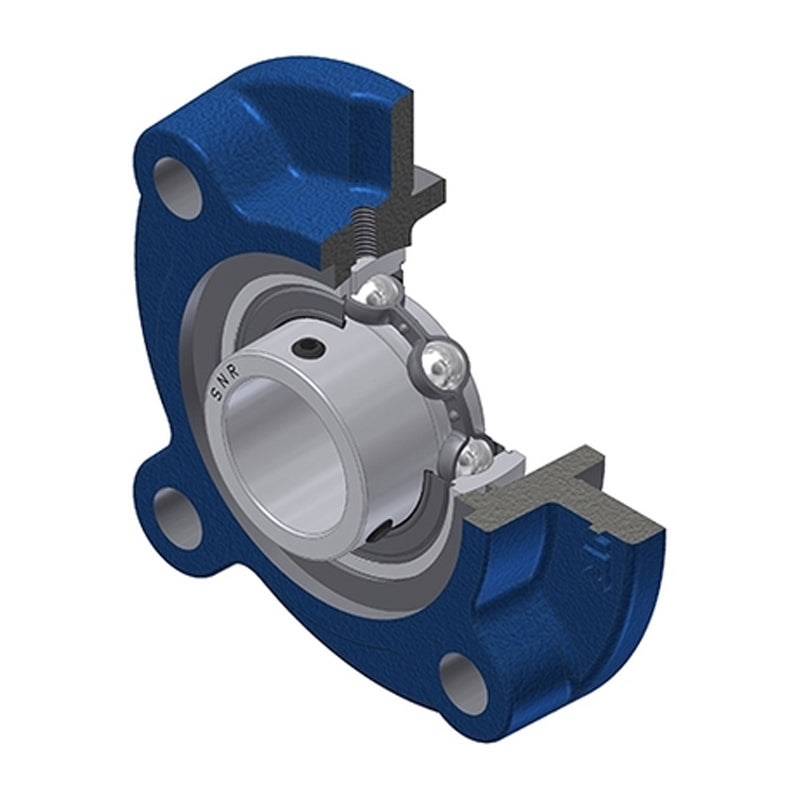

SNR USFC207N Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert - Allow 2-3 Days
SNR USFC207N Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert - Allow 2-3 Days
Regular price
Rs. 5,671.23
Regular price
Sale price
Rs. 5,671.23
Taxes included.
In stock
Price Break
5+
Rs. 5,614.52
10+
Rs. 5,387.67
20+
Rs. 5,274.24
50+
Rs. 5,104.11
100+
Rs. 4,990.68
500+
Rs. 4,707.12
1000+
Rs. 3,969.86
Description
Description
USFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USFC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A1 | 9mm |
| A2 | 34.5mm |
| A4 | 26mm |
| B | 32mm |
| e | 11mm |
| H3 | 90mm |
| J | 110mm |
| L | 135mm |
| N | 14mm |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.59 kg |
