SKU: USFA208CC-SNR

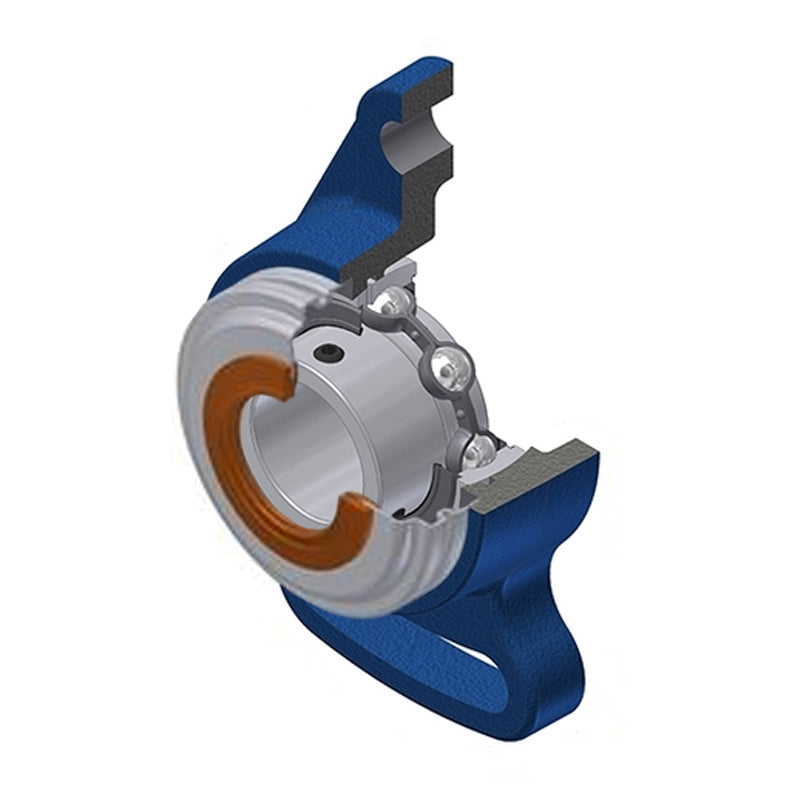

SNR USFA208CC Metric Cast Iron Adjustable Flange Unit with 40mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USFA208CC Metric Cast Iron Adjustable Flange Unit with 40mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
Rs. 8,505.57
Regular price
Sale price
Rs. 8,505.57
Taxes included.
In stock
Price Break
5+
Rs. 8,420.51
10+
Rs. 8,080.29
20+
Rs. 7,910.18
50+
Rs. 7,655.01
100+
Rs. 7,484.90
500+
Rs. 7,059.62
1000+
Rs. 5,953.90
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFA
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 46mm |
| B | 34mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| J1 | 71mm |
| L | 100mm |
| L1 | 87mm |
| N | 15mm |
| S | 9mm |
| Dz | 88mm |
| Z | 55.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.678 kg |
