SKU: USFA204CC-SNR

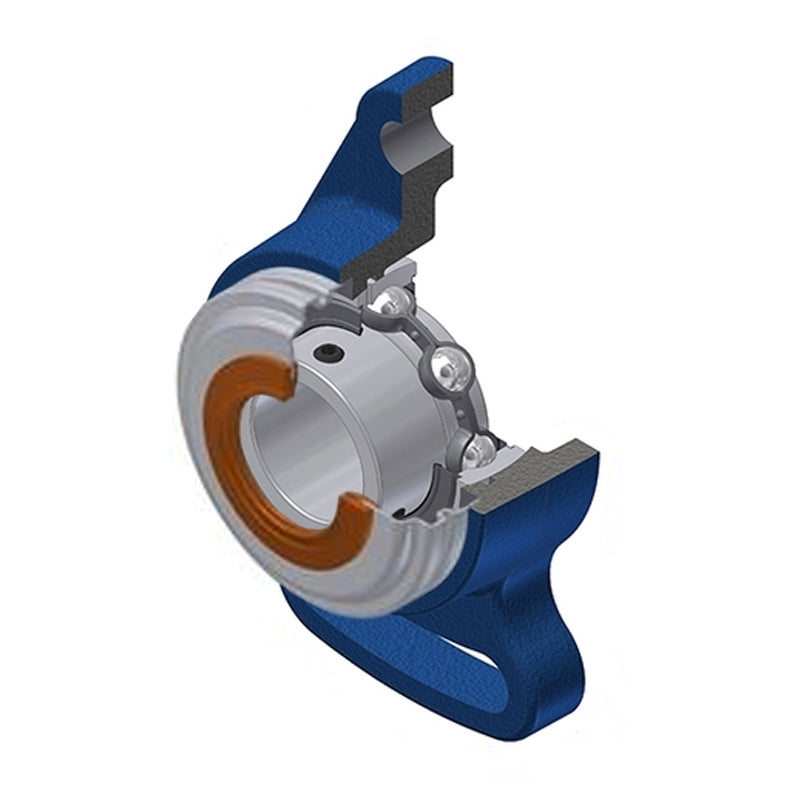

SNR USFA204CC Metric Cast Iron Adjustable Flange Unit with 20mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USFA204CC Metric Cast Iron Adjustable Flange Unit with 20mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
Rs. 7,085.84
Regular price
Sale price
Rs. 7,085.84
Taxes included.
In stock
Price Break
5+
Rs. 7,014.98
10+
Rs. 6,731.55
20+
Rs. 6,589.83
50+
Rs. 6,377.26
100+
Rs. 6,235.54
500+
Rs. 5,881.25
1000+
Rs. 4,960.09
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- USFA
- Bolt Hole Centres:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 25.5mm |
| A1 | 12mm |
| A2 | 33mm |
| B | 25mm |
| e | 15mm |
| H | 102mm |
| J | 78mm |
| J1 | 40mm |
| L | 60mm |
| L1 | 54mm |
| N | 10mm |
| S | 7mm |
| Dz | 54mm |
| Z | 37mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.461 kg |
