SKU: USF203-SNR
SNR USF203 Metric Four Bolt Square Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
SNR USF203 Metric Four Bolt Square Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,550.13
Regular price
Sale price
Rs. 2,550.13
Taxes included.
In stock
Price Break
5+
Rs. 2,524.63
10+
Rs. 2,422.62
20+
Rs. 2,371.62
50+
Rs. 2,295.12
100+
Rs. 2,244.11
500+
Rs. 2,116.61
1000+
Rs. 1,785.09
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- USF
- Bolt Hole Centres:
- 64mm
Technical
Technical

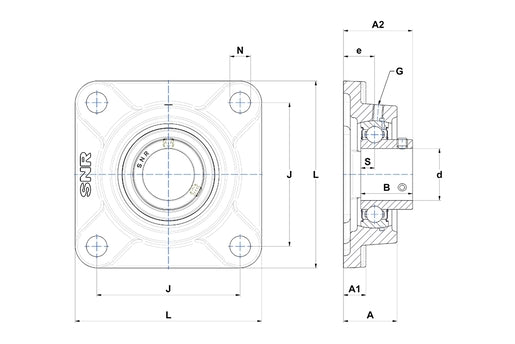

| --- | Dimensions |
|---|---|
| Shaft diameter d | 17mm |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 31mm |
| B | 22mm |
| e | 15mm |
| J | 64mm |
| L | 86mm |
| N | 12mm |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.41 kg |
