SKU: USC204-SNR

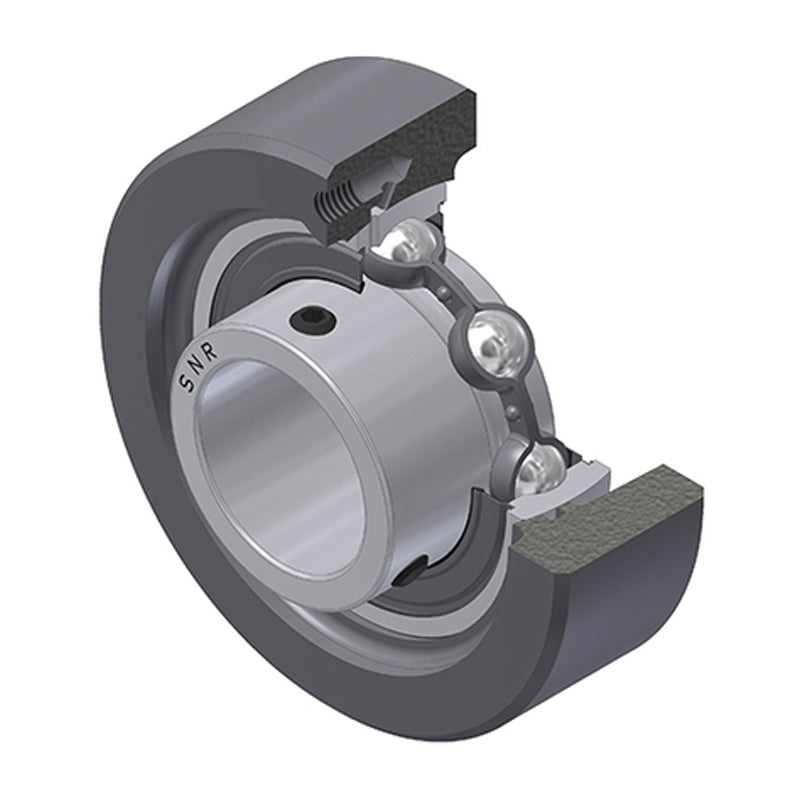

SNR USC204 Metric Cast Iron Cartridge Unit with 20mm Bore Insert 20mm Outside Dia - Allow 2-3 Days
SNR USC204 Metric Cast Iron Cartridge Unit with 20mm Bore Insert 20mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 2,550.13
Regular price
Sale price
Rs. 2,550.13
Taxes included.
In stock
Price Break
5+
Rs. 2,524.63
10+
Rs. 2,422.62
20+
Rs. 2,371.62
50+
Rs. 2,295.12
100+
Rs. 2,244.11
500+
Rs. 2,116.61
1000+
Rs. 1,785.09
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- USC
Technical
Technical

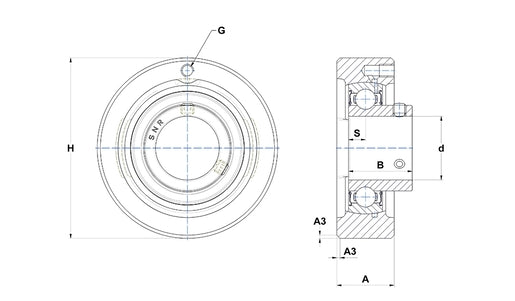

| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 20mm |
| A3 | 1.5mm |
| B | 25mm |
| H | 72mm |
| S | 7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.43 kg |
