SKU: UR.205

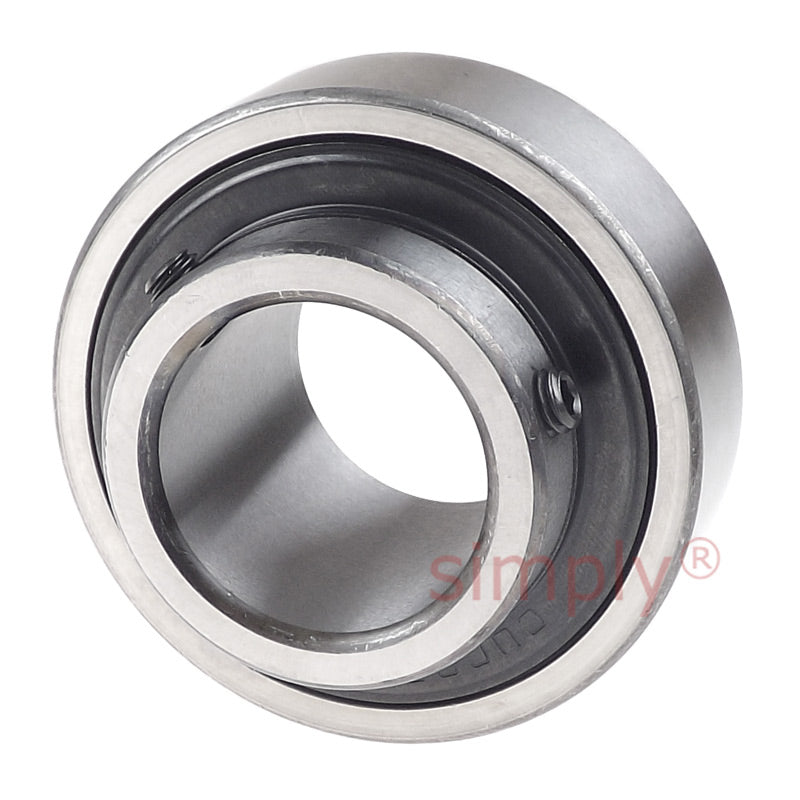

UR205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
UR205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
Rs. 893.57
Regular price
Sale price
Rs. 893.57
Taxes included.
In stock
Price Break
10+
Rs. 795.28
19+
Rs. 750.60
29+
Rs. 741.66
39+
Rs. 732.73
49+
Rs. 723.79
74+
Rs. 714.86
99+
Rs. 670.18
199+
Rs. 661.24
249+
Rs. 652.31
499+
Rs. 643.37
999+
Rs. 625.50
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
